What is an ODN optical distribution network?

The ODN is the passive optical layer between the OLT at the central office and the ONT at each subscriber. It carries splitters, connectors, closures, boxes and frames, but no active electronics. Because every element is passive, the ODN decides the optical loss budget and the long-term reliability of the whole access network.

Which products count as ODN passive components?

The usual set covers fiber distribution boxes, optical cable cross-connect cabinets, optical cable joint closures, optical fiber distribution frames, optical splitter boxes, optical cable terminal boxes and optical cable distribution boxes, plus splitters, adapters and patch cords. They are grouped by where they sit in the chain rather than by the name alone.

What is the difference between a fiber distribution box and an optical cable distribution box?

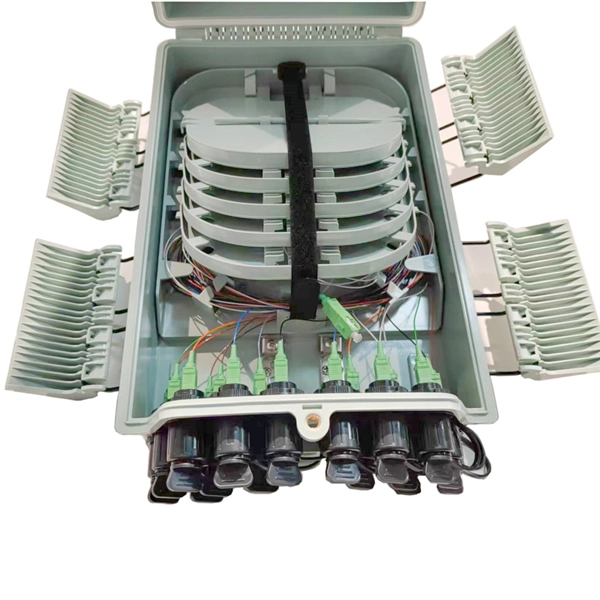

A fiber distribution box is normally the smaller access-level unit mounted near the subscriber, holding splitters and drop cable terminations. An optical cable distribution box sits higher in the chain and manages the feeder or distribution cable before it is branched. Capacity, splice tray count and cable entry range are the practical ways to tell them apart on a drawing.

When should an optical cable joint closure be used instead of a distribution frame?

Use a joint closure wherever two cable lengths are spliced in a manhole, duct or aerial span and no patching is needed. Use an optical fiber distribution frame where links must be cross-connected, tested or reassigned over time, typically inside a central office or a large access node. Closures protect splices; frames provide flexibility.

How do I size an optical splitter box for a carrier ODN solution?

Start from the split ratio the loss budget allows, then count the subscriber ports that will actually be served in the first two years and add margin for later fill. A 1:8 splitter in a box rated for two splitter modules usually costs far less than returning to a live street cabinet. Check splitter module size, adapter type and bend radius inside the box before ordering.

What decides the quality of ODN network construction?

Loss budget discipline and records. Keep splices and connectors within the planned dB allowance, respect the minimum bend radius of every cable, seal every closure against water and dust, and label each port, tray and cable end. An ODN that is documented can be extended or repaired; one that is not usually has to be re-spliced.

ODN optical distribution network and passive components

ODN Optical Distribution Network and Passive Components for FTTH Access

Plan the passive layer first: fix the split ratio and loss budget, then match fiber distribution boxes, cross-connect cabinets, joint closures, distribution frames and splitter boxes to each node.

Explore the ODN range Read ODN guides

Feeder, distribution and drop segments

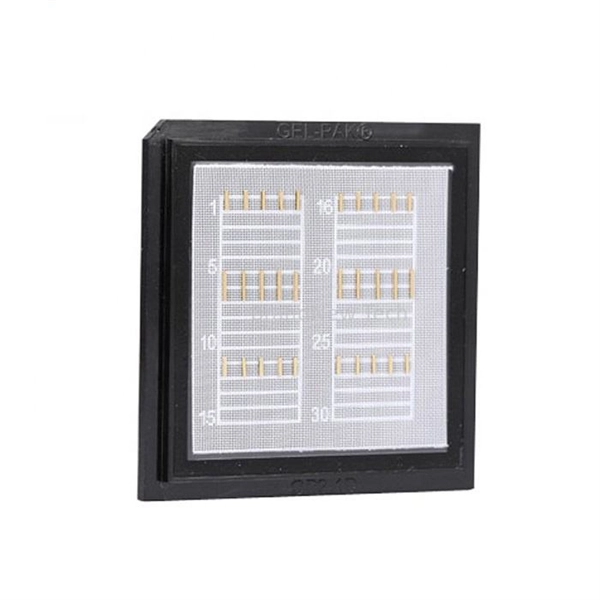

Boxes, cabinets, closures and frames

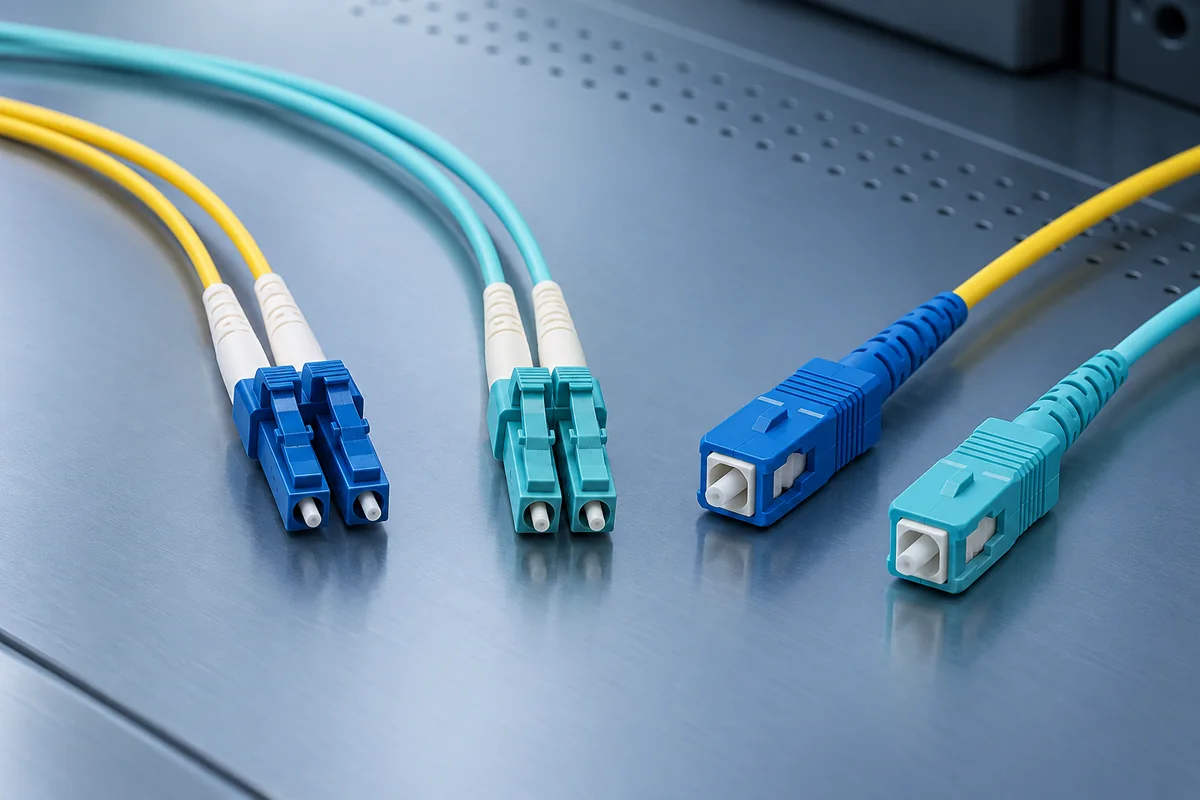

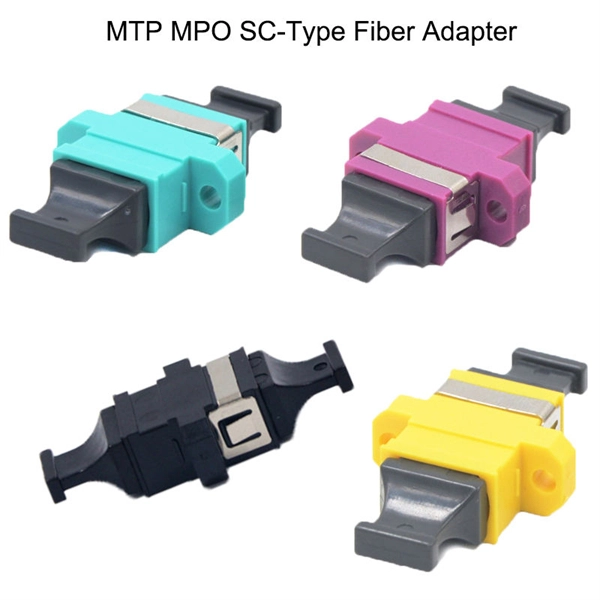

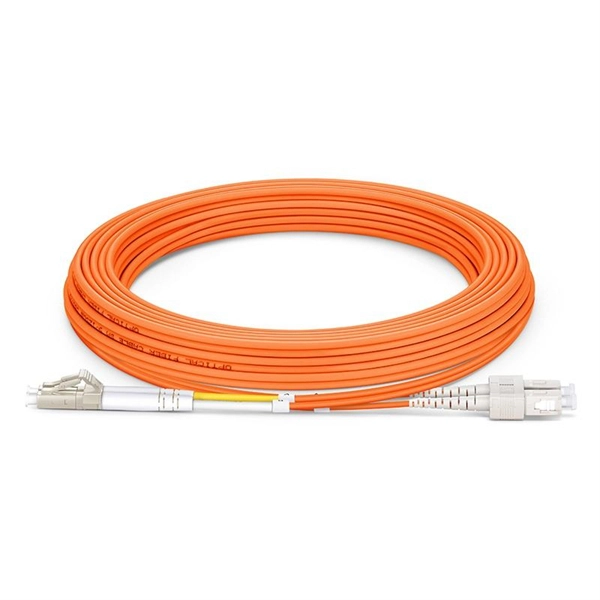

Splitters, adapters and patch cords

ODN optical distribution network with fiber distribution box, splitter and cable termination

LayerFully passive

SplitFeeder to drop

VerifyLoss and records

12Component families

6Deployment scenarios

15mmMinimum bend radius

LiveSearch-derived resources

ODN library

Start from the Topology and the Split Ratio

Decide where the feeder cable is branched and how many subscribers each node serves, then confirm box capacity, tray count, splitter module size and cable entry range.

Passive layer

ODN & Passive Components

Splitters, adapters, connectors and patch cords that carry the access signal with no active electronics in the field.

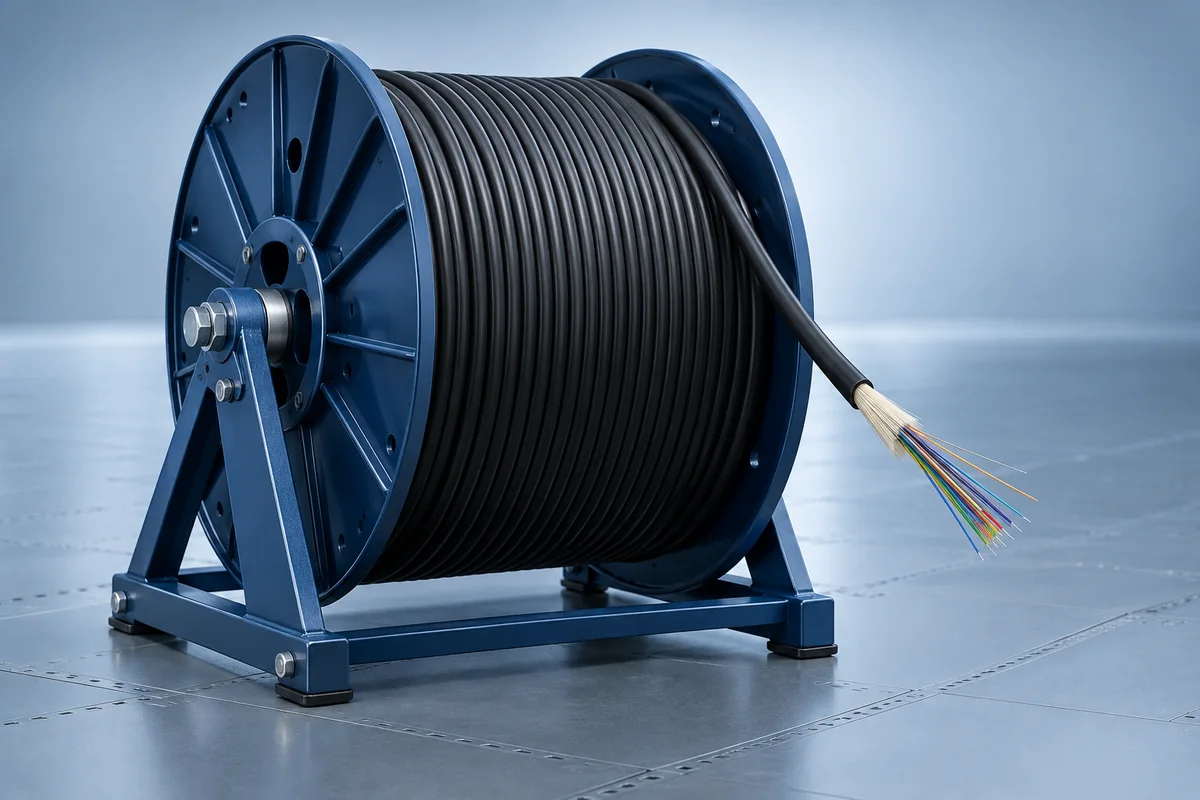

Optical cable reel prepared for ODN distribution cable installation

Cable layer

Distribution & Drop Cable

Feeder, distribution and drop cable sized to the pull, the duct and the bend radius along the route.

Branching

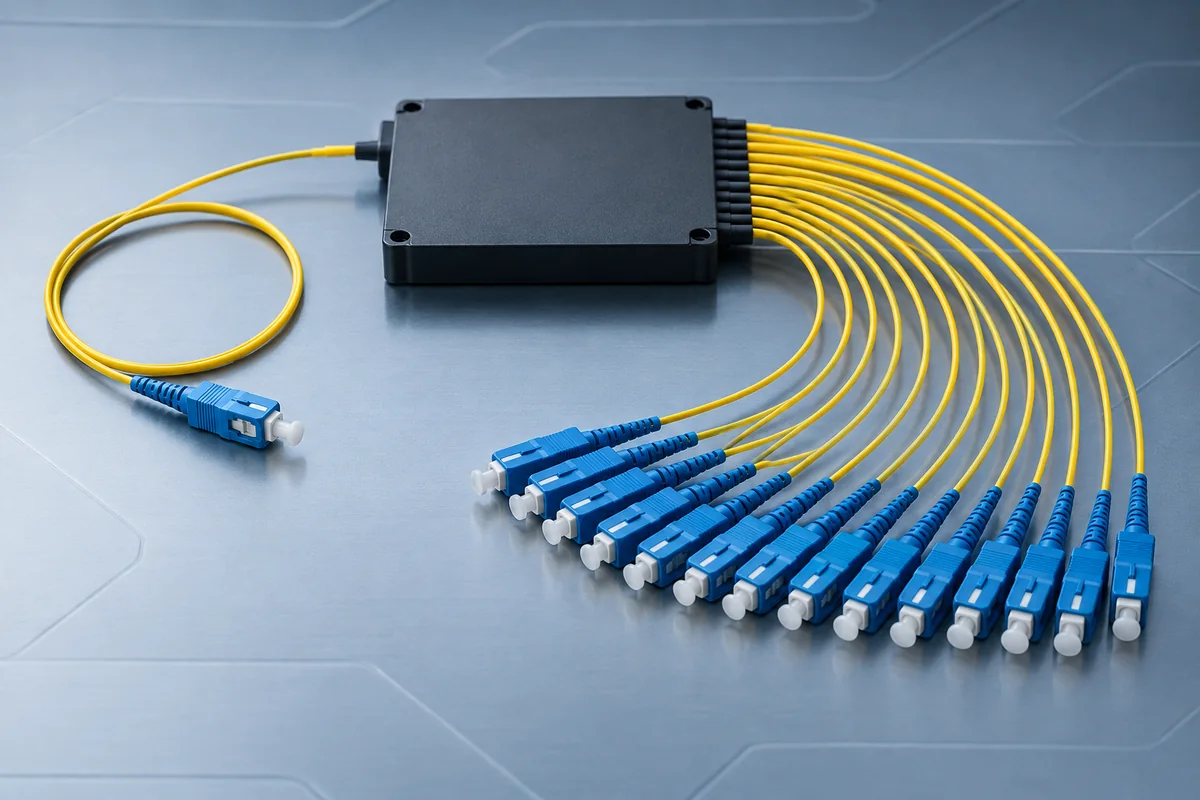

Splitter Boxes & Distribution Boxes

Splitter boxes and fiber distribution boxes that branch the network and hold the drop terminations.

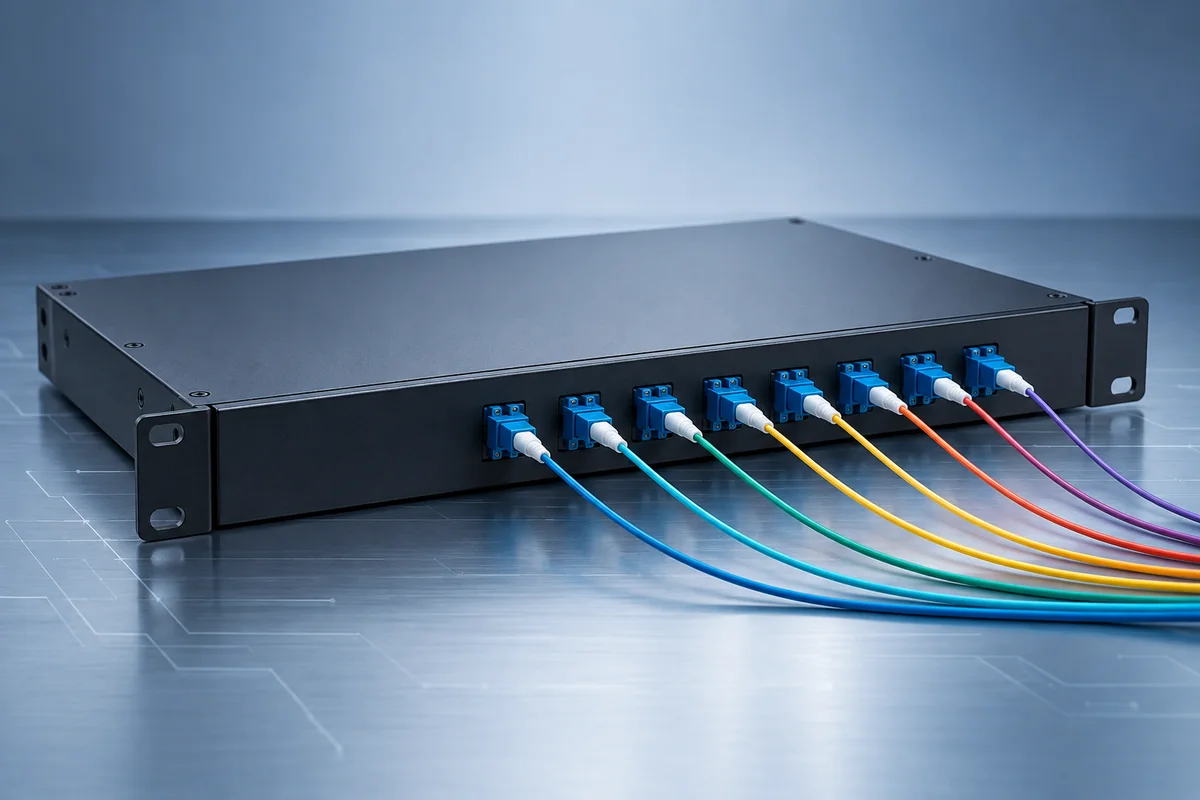

Optical fiber distribution frame with cable management in an access node
