ODN Optical Distribution Network Components by Role in the Passive Path

ODN network

ODN Optical Distribution Network

The passive path between the OLT and the subscriber ONT, defining the loss budget for the whole access network.

Specify:

Topology, split ratio, cable counts and node placement.

Passive layer

ODN Passive Components

Splitters, adapters, connectors, boxes and closures that shape the network without any powered equipment.

Specify:

Insertion loss, split ratio, adapter interface and enclosure compatibility.

Engineering view

Optical Distribution Network

The engineering view of the same layer: topology, split ratio, cable counts and node placement.

Specify:

Feeder, distribution and drop segments plus node count.

Distribution box

Fiber Distribution Box

Access-level box that holds splitter modules and drop terminations close to the subscriber.

Specify:

Tray count, splitter module size, drop ports and cable entry.

Cabinet

Optical Cable Cross-Connect Cabinet

Street or node cabinet for patching, cross-connecting and re-routing distribution cable.

Specify:

Port count, adapter type, cable entry range and sealing rating.

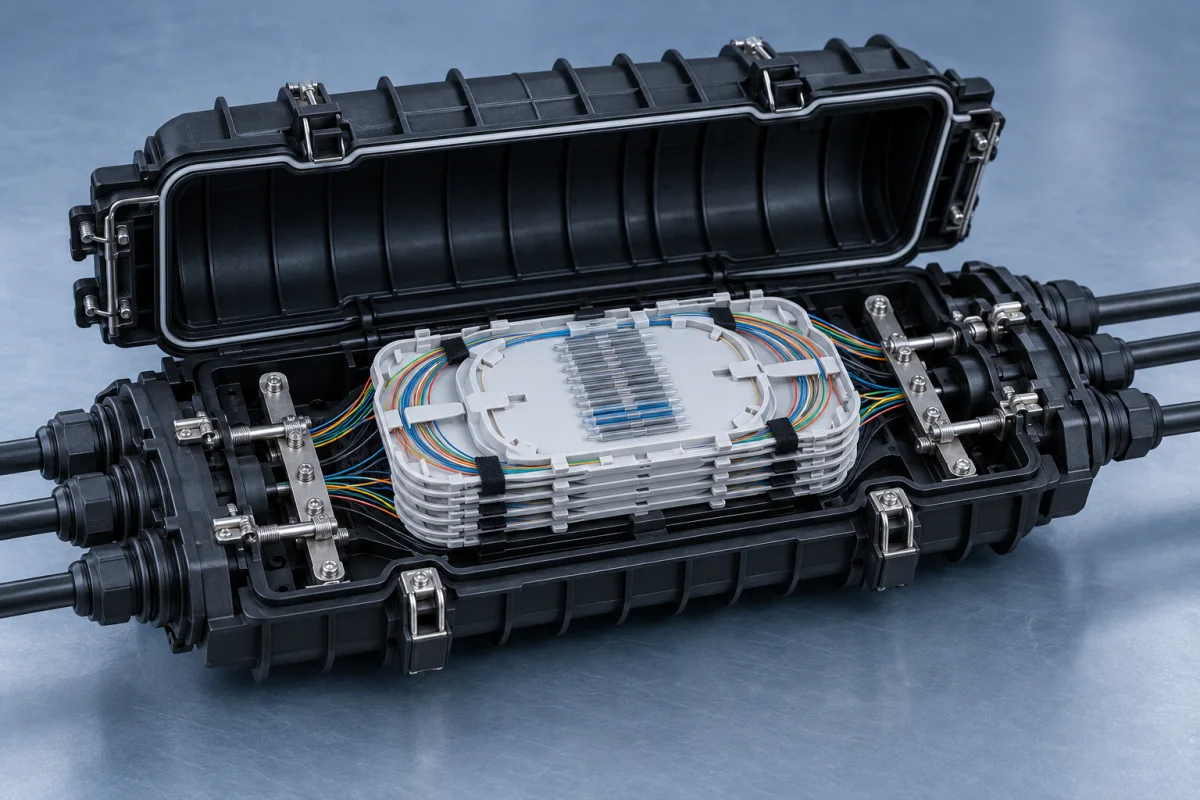

Joint closure

Optical Cable Joint Closure

Sealed enclosure that protects spliced joints in manholes, ducts and aerial spans.

Specify:

Splice capacity, cable diameter range, sealing method and re-entry.

Frame

Optical Fiber Distribution Frame

Rack-based frame for central office patching, testing and organised cable records.

Specify:

Rack size, port count, adapter interface and cable management.

Splitter box

Optical Splitter Box

Housing for one or more splitter modules, sized by split ratio and future fill.

Verify:

Split ratio, module size, port layout and enclosure compatibility.

Terminal box

Optical Cable Terminal Box

End-of-cable box that terminates a distribution cable and presents adapter ports.

Verify:

Port count, adapter type, cable entry and mounting.

Distribution box

Optical Cable Distribution Box

Upstream box that manages feeder or distribution cable before it is branched.

Verify:

Capacity, cable entry, splitter accommodation and sealing.

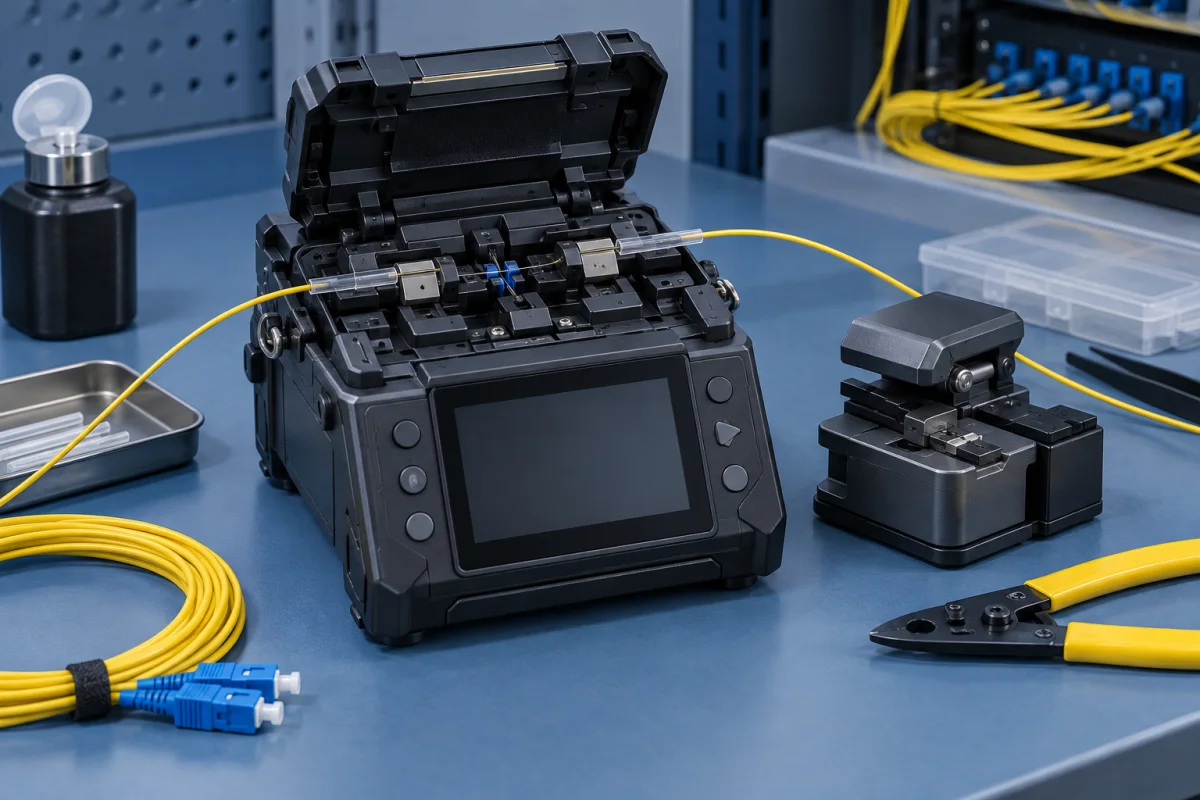

Construction

ODN Network Construction

Route survey, node placement, splicing, sealing, testing and documentation practice.

Verify:

Topology, node count, splice count and loss budget.

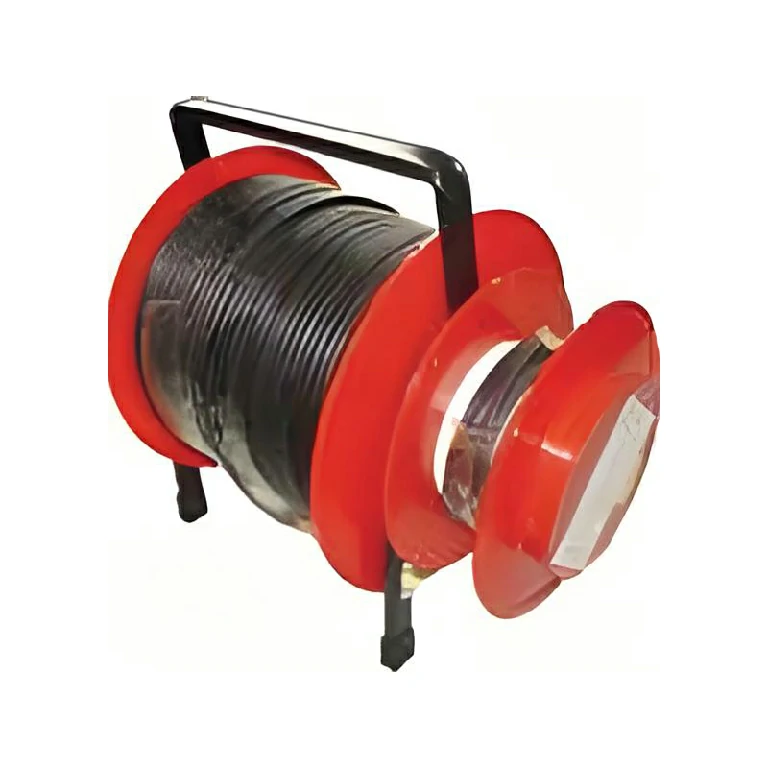

Carrier solutions

Carrier ODN Solutions

Staged builds for operators that must serve subscribers quickly and keep capacity for later fill.

Verify:

First-year fill, split ratio headroom and node expansion plan.

Splitters

PLC Splitter Modules

Planar lightwave circuit splitters in bare, module or cassette form for ODN branching.

Verify:

Split ratio, uniformity, insertion loss and connector interface.

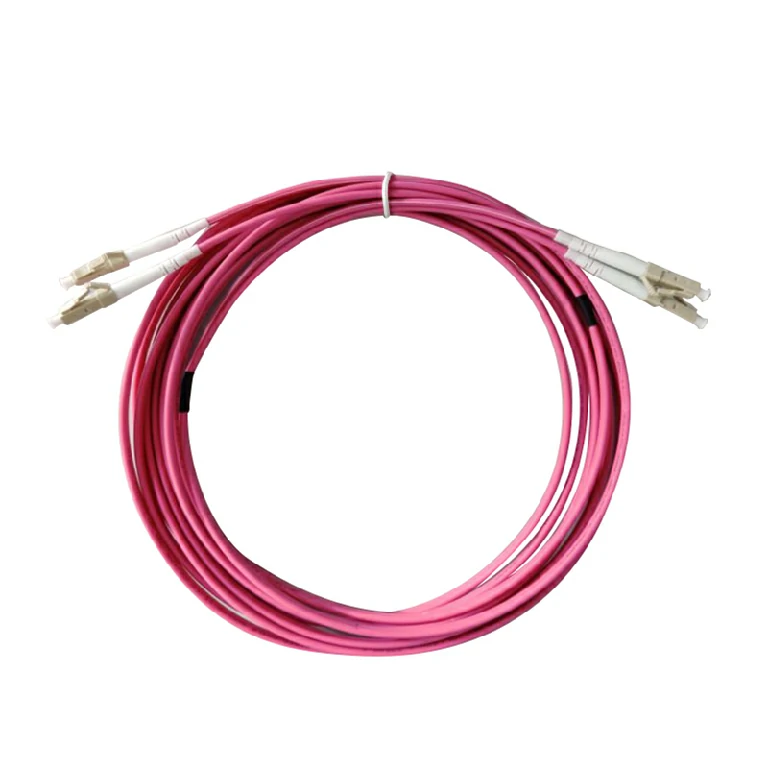

Adapters & cords

ODN Adapters & Patch Cords

SC, LC and related adapters and patch cords for boxes, cabinets, frames and splitter modules.

Verify:

Interface, polish type, insertion loss and durability.

Verification

ODN Test Equipment

OTDR, light source, optical power meter, inspection and cleaning tools for ODN acceptance.

Verify:

Wavelengths, dynamic range, launch conditions and reporting needs.

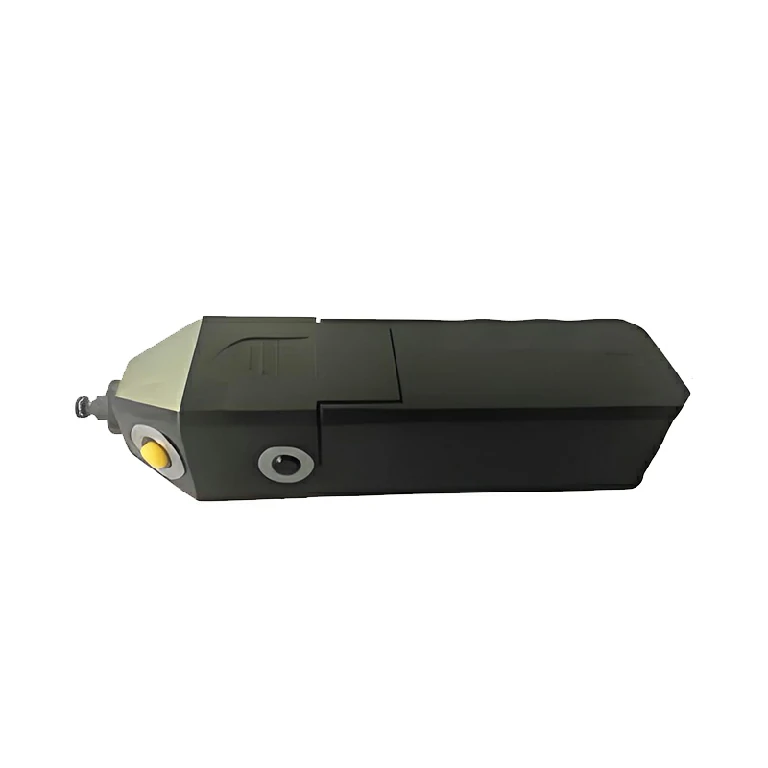

Tooling

ODN Tooling & Cleaning

Hand tools, cleaning pens and inspection scopes for connectorized ODN nodes.

Verify:

Adapter compatibility, cleaning method and inspection magnification.

Boxes

ODN Distribution & Termination

Wall boxes, floor boxes and cable-management hardware for organised ODN nodes.

Verify:

Capacity, cable entry, bend control and accessibility.

Outdoor closures

Outdoor Joint Closures

Sealed closures that protect spliced joints along buried and aerial ODN spans.

Verify:

Cable diameter, sealing method, mounting and re-entry.

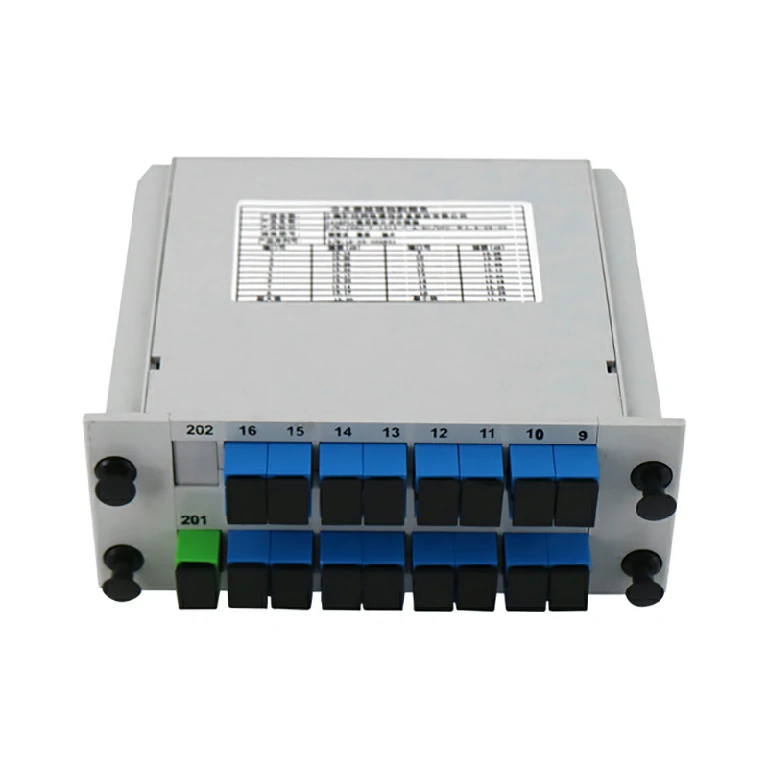

ODN integration

Splitter Cassettes & Inserts

Connectorized modules that organise passive splitting inside ODN cabinets, frames and boxes.

Verify:

Split ratio, port layout, adapter type and enclosure compatibility.
