ODN Optical Distribution Network Selection, Construction and Test Guides
Use these starting points to connect ODN specifications with real passive infrastructure decisions.
Start with the Question You Need to Answer
Each topic opens a dynamic article route backed by the existing database and routing logic.

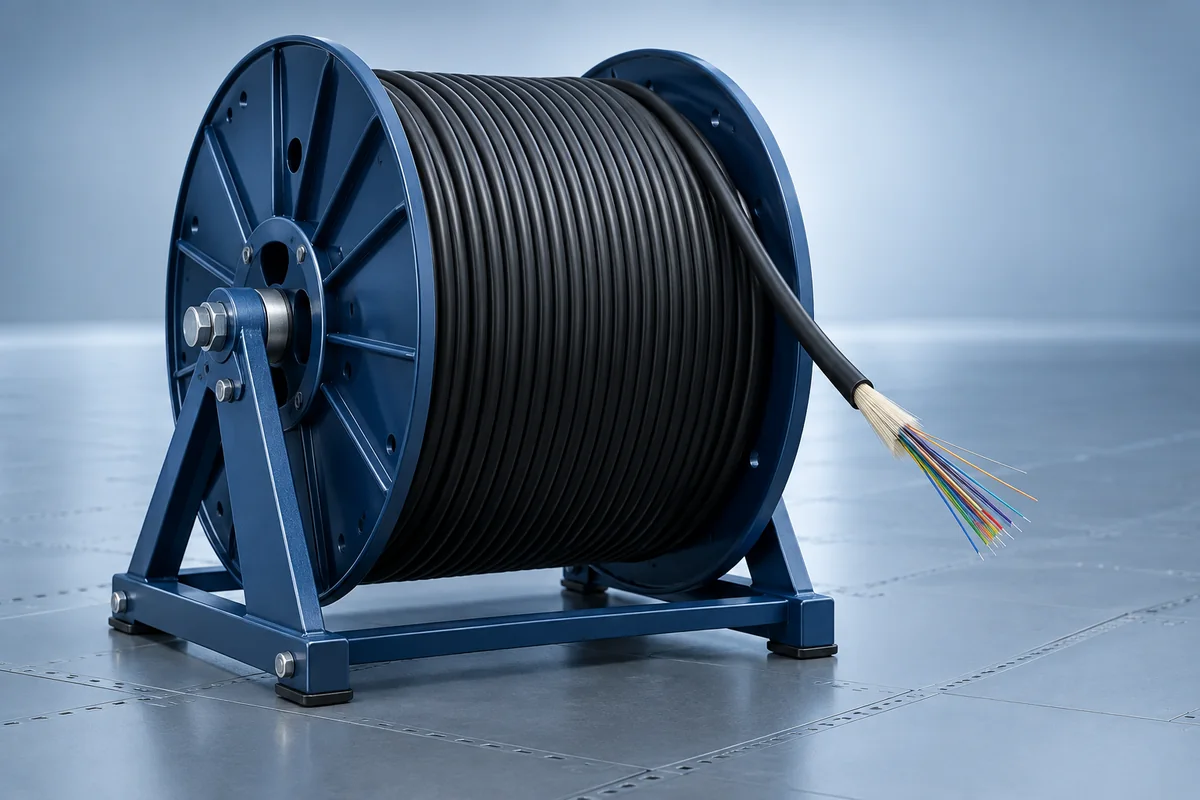

How to Plan an ODN Optical Distribution Network
Map topology, split ratio and node placement against the passive loss budget.
ODN Passive Components and Where They Sit
Map splitters, adapters and boxes onto the feeder, distribution and drop segments.

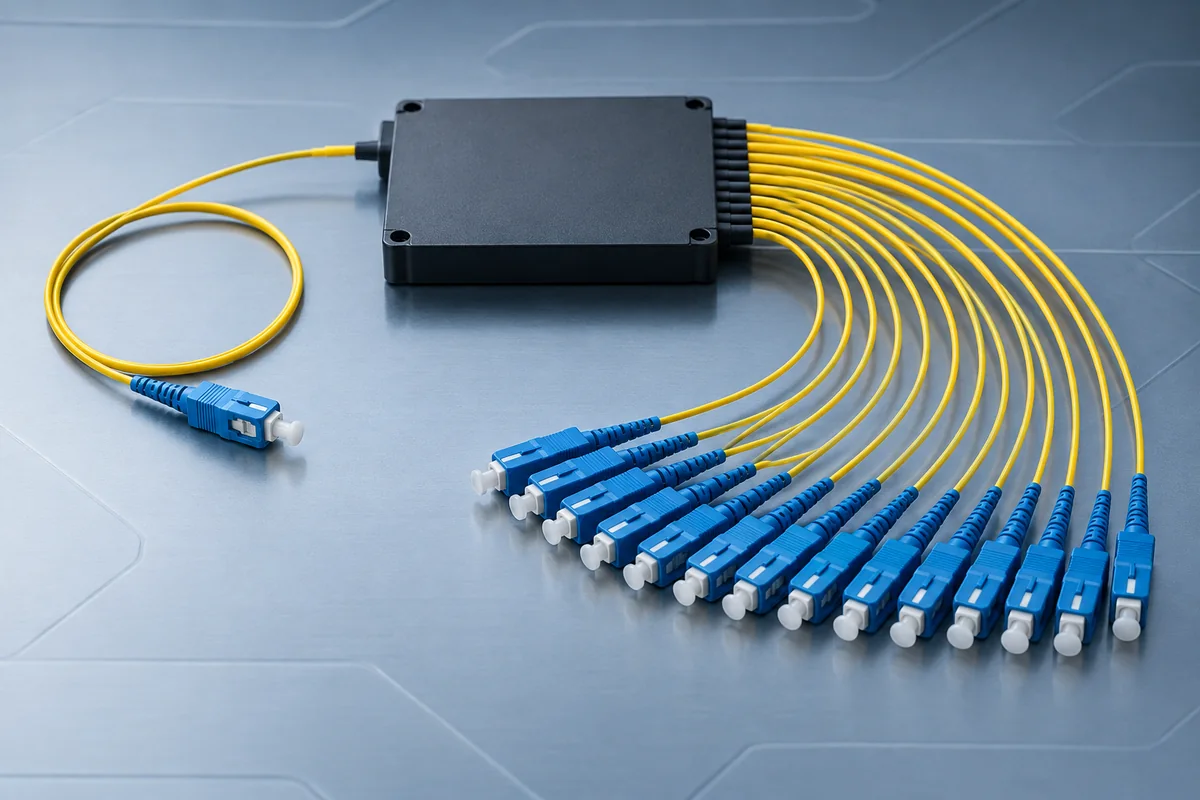

Fiber Distribution Box Capacity Planning
Size tray count, splitter modules and drop ports before the box is mounted on site.

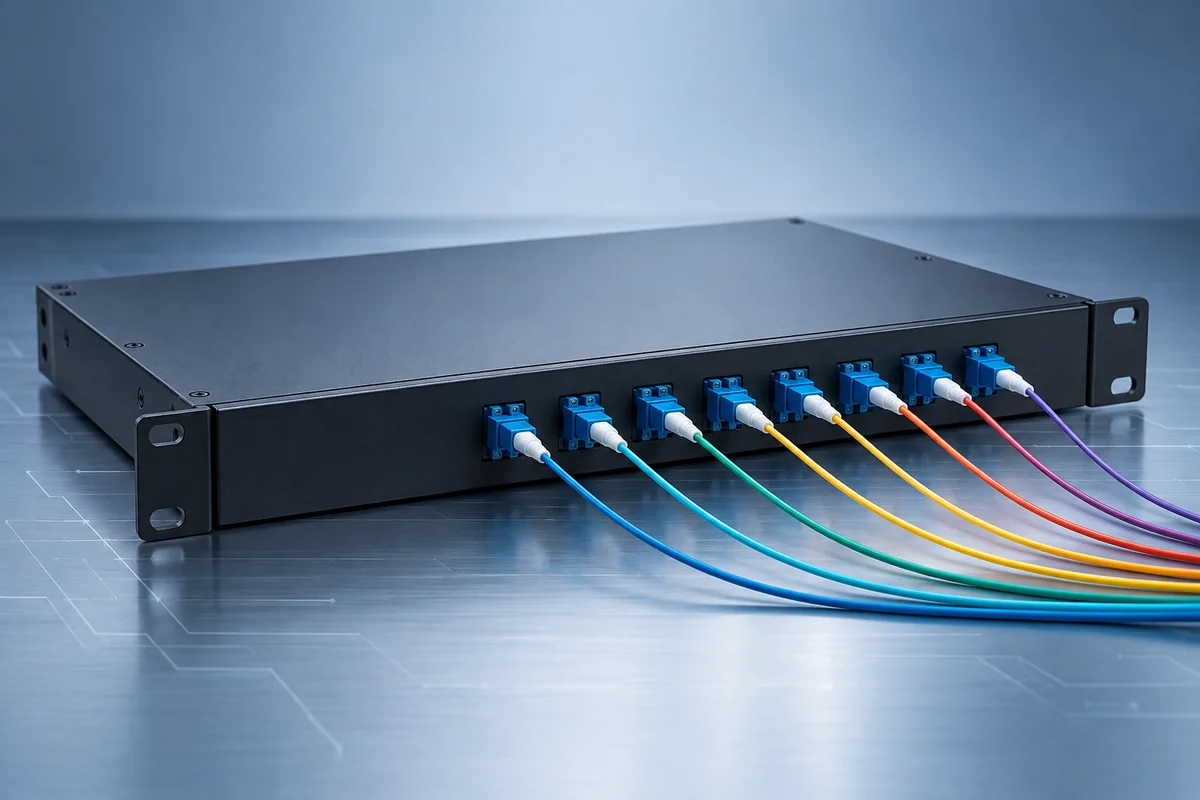

Joint Closures and Distribution Frames Compared
Choose sealed splicing where flexibility is not needed, and frames where patching must stay open.

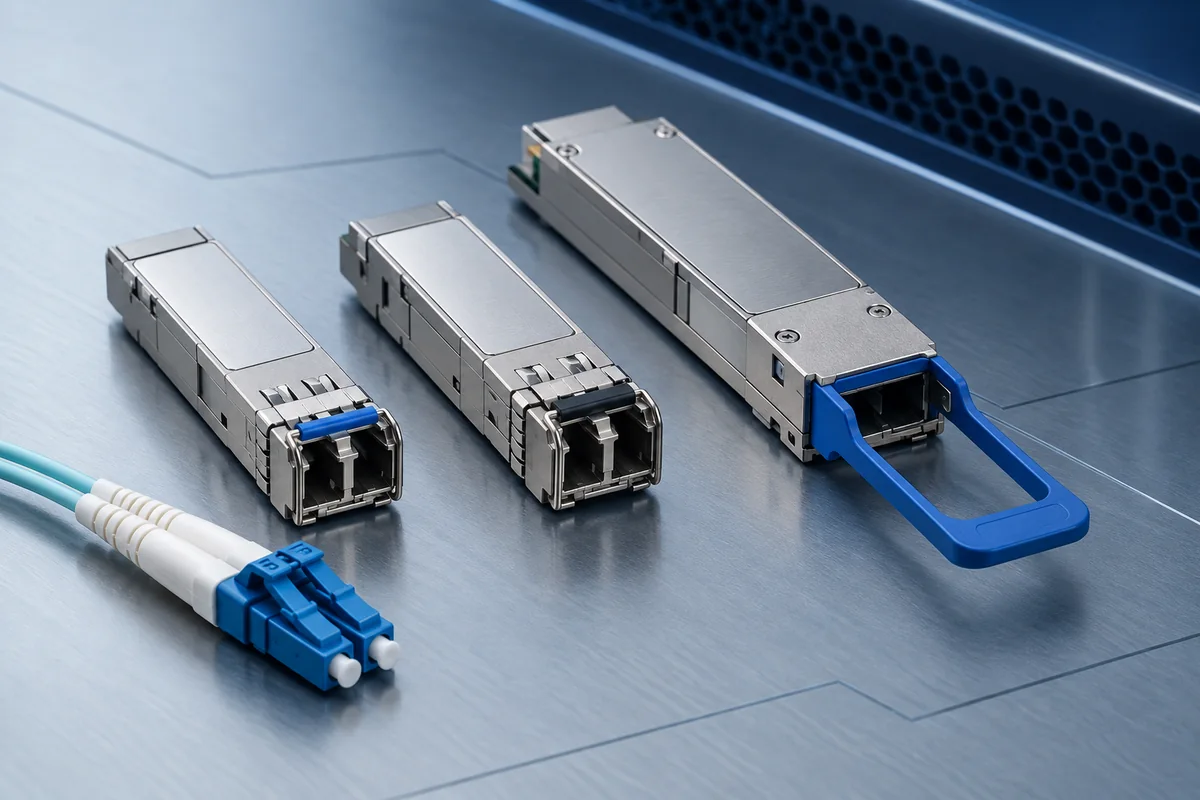

ODN Network Construction from Survey to Records
Connect topology, node placement, splicing, sealing and acceptance testing.

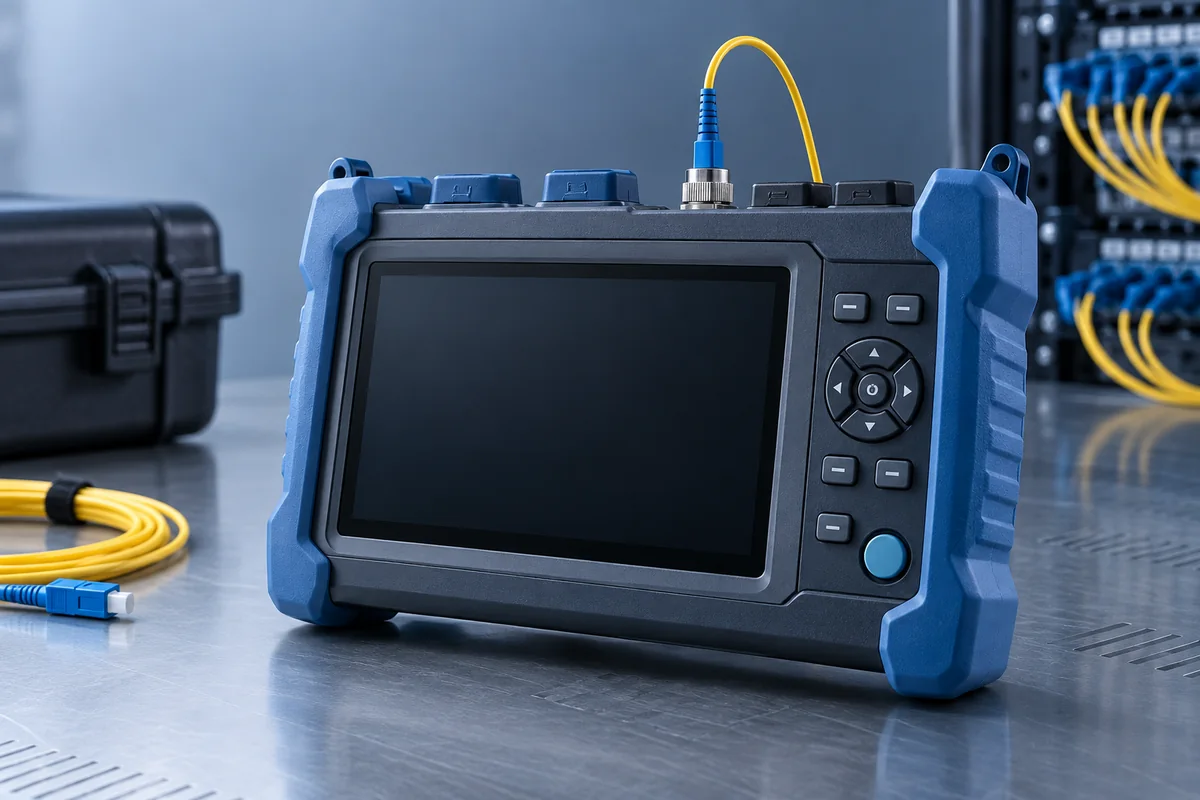

Loss Budget for Carrier ODN Solutions
Balance splice loss, connector loss and splitter loss across the whole passive path.
ODN Optical Distribution Network Quick Reference
Short answers point to the variables that should be checked in more detail.
What is an ODN optical distribution network?
The ODN is the passive optical layer between the OLT at the central office and the ONT at each subscriber. It carries splitters, connectors, closures, boxes and frames, but no active electronics. Because every element is passive, the ODN decides the optical loss budget and the long-term reliability of the whole access network.
Which products count as ODN passive components?
The usual set covers fiber distribution boxes, optical cable cross-connect cabinets, optical cable joint closures, optical fiber distribution frames, optical splitter boxes, optical cable terminal boxes and optical cable distribution boxes, plus splitters, adapters and patch cords. They are grouped by where they sit in the chain rather than by the name alone.
What is the difference between a fiber distribution box and an optical cable distribution box?
A fiber distribution box is normally the smaller access-level unit mounted near the subscriber, holding splitters and drop cable terminations. An optical cable distribution box sits higher in the chain and manages the feeder or distribution cable before it is branched. Capacity, splice tray count and cable entry range are the practical ways to tell them apart on a drawing.
When should an optical cable joint closure be used instead of a distribution frame?
Use a joint closure wherever two cable lengths are spliced in a manhole, duct or aerial span and no patching is needed. Use an optical fiber distribution frame where links must be cross-connected, tested or reassigned over time, typically inside a central office or a large access node. Closures protect splices; frames provide flexibility.
How do I size an optical splitter box for a carrier ODN solution?
Start from the split ratio the loss budget allows, then count the subscriber ports that will actually be served in the first two years and add margin for later fill. A 1:8 splitter in a box rated for two splitter modules usually costs far less than returning to a live street cabinet. Check splitter module size, adapter type and bend radius inside the box before ordering.
What decides the quality of ODN network construction?
Loss budget discipline and records. Keep splices and connectors within the planned dB allowance, respect the minimum bend radius of every cable, seal every closure against water and dust, and label each port, tray and cable end. An ODN that is documented can be extended or repaired; one that is not usually has to be re-spliced.
