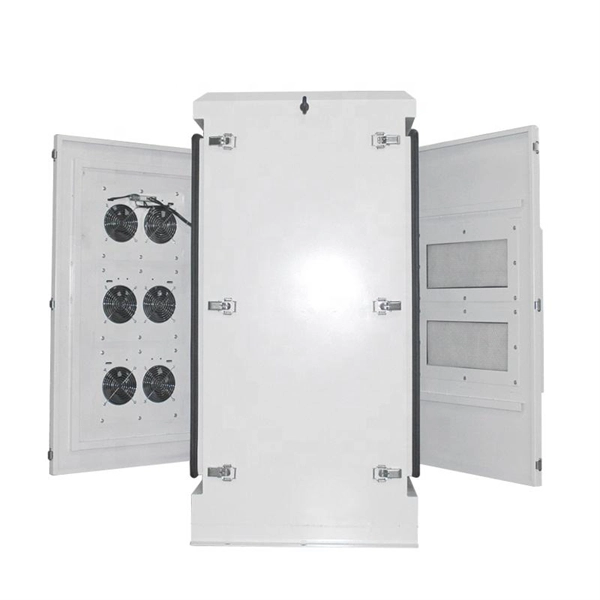

Function of Terminal Box for Fixing Optical Cables

ODN and passive infrastructure knowledge brief Published 23 Aug 2024

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

An optical cable terminal box is a protective enclosure designed to fix, splice, and manage optical fibers, suitable for both indoor and outdoor applications.Structure and Components

Optical cable terminal boxes are typically made from engineering plastic (ABS) or high-quality cold-rolled steel, providing durability and protection against environmental factors . Key components include:

  • Inlet and outlet ports: Plastic protective rings reduce friction and prevent damage to the optical cable and pigtails .
  • Optical cable fixing frame: Secures the incoming optical cable inside the box .
  • Strengthening core fixing clip: Holds the cable's reinforcing core to stabilize the fiber .
  • Fiber splicing tray: Protects spliced fibers and stores excess optical fiber, often in a removable, stackable design for easy maintenance .
Types of Terminal Boxes

Terminal boxes vary based on design, material, and application:

  • Straight-through terminal box: Single external hole for a direct line .
  • Branched-type terminal box: Multiple holes for branching connections .
  • Indoor vs. outdoor: Indoor boxes are compact for MDUs or network rooms, while outdoor boxes are weatherproof and suitable for wall or pole mounting .
  • Material options: Plastic or metal shells depending on environmental requirements .
  • Specialized types: Pigtail type, adapter type, or cabinet type, customizable for specific network needs .
Applications

Terminal boxes are widely used in FTTx networks, local telephone systems, data and image transmission, and cable TV networks . They facilitate:

  • Splicing and fusion of optical fibers
  • Storage and management of excess fiber
  • Protection of fibers from mechanical damage and environmental exposure
  • Connection to indoor circuits or distribution networks
Installation and Features
  • Mounting options: Wall-mounted, pole-mounted, or desktop installation .
  • Cable management: Organized outlets and internal trays simplify fiber routing and maintenance .
  • Sealing and protection: Many boxes are mechanically sealed and waterproof for outdoor use .
  • Flexibility: Removable splicing trays allow easy operation and maintenance . In summary, an optical cable terminal box is a versatile and essential component in fiber optic networks, providing secure fixation, splicing, storage, and protection for optical cables and pigtails, with options tailored for indoor or outdoor deployment and various network configurations .
