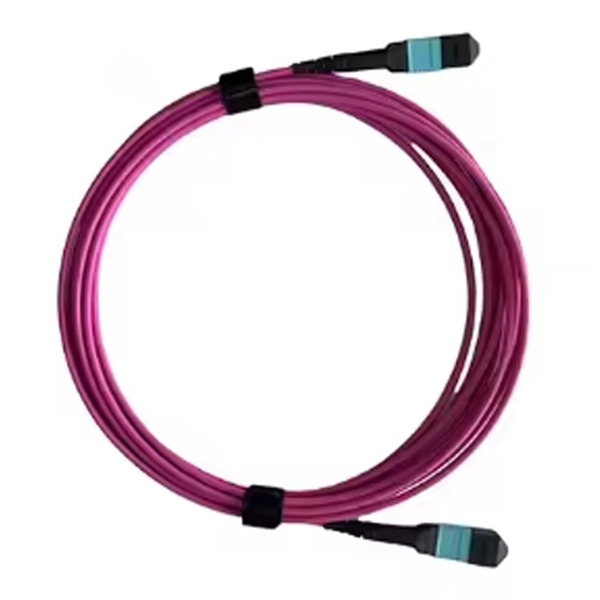

Fiber Optic High-Speed ​​Channel Setup

Setting up a high-speed fiber optic channel involves selecting the right fiber type, using optical transceivers or media converters, and carefully planning cabling and network architecture for maximum speed and reliability.Choosing the Right Fiber and Equipment

Fiber optic cables come in two main types: single-mode (OS1/OS2) for long-distance outdoor applications and multi-mode (OM3/OM4) for shorter indoor runs with high bandwidth . Single-mode fiber supports distances up to 160 km, while multi-mode fiber is ideal for distances up to 550 meters at 1 Gbps . Avoid outdoor fiber with metal sheaths if electrical isolation is required, as metal can negate surge protection benefits . Optical transceivers (SFP, SFP+, or QSFP modules) convert electrical signals to optical signals and vice versa. Hot-pluggable transceivers allow modular upgrades without shutting down the network . For bridging fiber to existing Ethernet networks, fiber media converters are essential, converting copper Ethernet signals to fiber and extending network reach beyond copper limitations .

Network Architecture

For home or office setups, you can implement a Fiber to the Home (FTTH) or Fiber to the Premises (FTTP) architecture. Key components include:

• Optical Line Terminal (OLT): Located at the service provider or central office.
• Optical Network Unit/Terminal (ONU/ONT): Installed at the user premises to convert optical signals to electrical signals.
• Optical Distribution Network (ODN): Connects OLT and ONU/ONT using fiber, splitters, and connectors . Active Optical Networks (AON) provide dedicated fiber per user, while Passive Optical Networks (PON) share fiber among multiple users, reducing infrastructure costs .

Installation Best Practices

1. Plan the route carefully: Avoid sharp bends; follow manufacturer bend radius guidelines to prevent attenuation and microfractures .
2. Use proper connectors and patch cables: LC or SC connectors are common; ensure cleanliness to prevent signal loss .
3. Install surge protection: Fiber provides electrical isolation, but outdoor installations may still require additional protection for connected devices .
4. Test the network: Use a fiber optic tester to verify signal integrity and troubleshoot any losses before finalizing the setup .

Enhancing Speed and Reliability

• Use OM4 or OS2 fiber for higher bandwidth and longer distances.
• Deploy 10G or higher SFP+ transceivers for maximum throughput.
• Consider managed switches with SFP ports to optimize network performance and allow modular expansion .
• For multi-building setups, pair fiber with media converters to maintain high-speed Ethernet connectivity over long distances . By carefully selecting fiber type, transceivers, and network architecture, and following proper installation practices, you can establish a high-speed, reliable fiber optic channel capable of supporting modern data-intensive applications, streaming, and enterprise networking needs .
