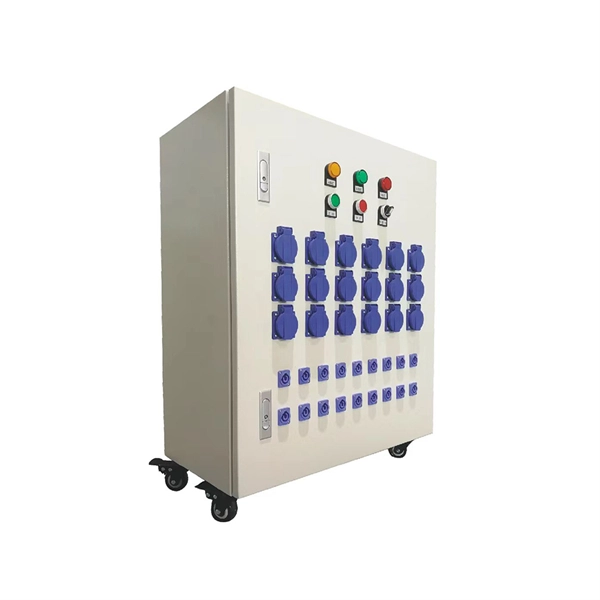

How to connect cross-wires in a distribution box

ODN and passive infrastructure knowledge brief Published 15 Apr 2024

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Cross wires in a distribution box should be connected by following the correct sequence from the main supply to the MCBs/RCCBs, ensuring proper phase, neutral, and earth connections for safety and functionality.Step-by-Step Connection Process

1. Safety First Always turn off the main power supply before starting any wiring work to prevent electrical shock. Use insulated tools and wear protective gear while handling wires . 2. Identify Wires and Terminals

Phase (Live) wire: Usually brown or red
Neutral wire: Usually blue or black
Earth wire: Green/yellow striped Mark each wire clearly to avoid confusion during connection . 3. Connect the Main Supply
Attach the incoming phase wire to the input terminal of the Main MCB.
Connect the neutral wire to the neutral bus bar or the input of the RCCB if used.
Connect the earth wire to the earth bus or link . 4. Connect Cross Wires to Branch Circuits
From the output of the Main MCB, connect the phase wire to the input of the RCCB (if installed).
From the RCCB output, connect the phase wire to the input of each branch MCB.
For double-pole (DP) MCBs, connect both phase and neutral wires from the RCCB output to the MCB input. For single-pole (SP) MCBs, connect only the phase wire; neutral goes to the neutral bus .
Connect the earth wire from each load to the earth bus. 5. Organize and Secure Wires
Use plastic ties to bind wires neatly, keeping them straight and avoiding tangles.
Maintain proper spacing and routing: main-to-branch wiring generally goes on the left, outgoing wires on the right . 6. Verify Connections
Use a multimeter to check for continuity, correct voltage, and absence of short circuits.
Ensure all terminals are tightened securely and no bare wires are exposed . 7. Final Safety Inspection
Confirm that all MCBs and RCCBs are rated appropriately for the load.
Check that the earth connection is solid and that all wires are insulated properly.
Only after inspection, turn on the main supply and test each circuit . Following these steps ensures that cross wires in a distribution box are connected safely, efficiently, and in compliance with standard electrical practices.
