Installing a distribution box involves selecting a safe location, securing the box, connecting incoming and outgoing circuits, and ensuring proper grounding and protection devices.Site Selection and Preparation

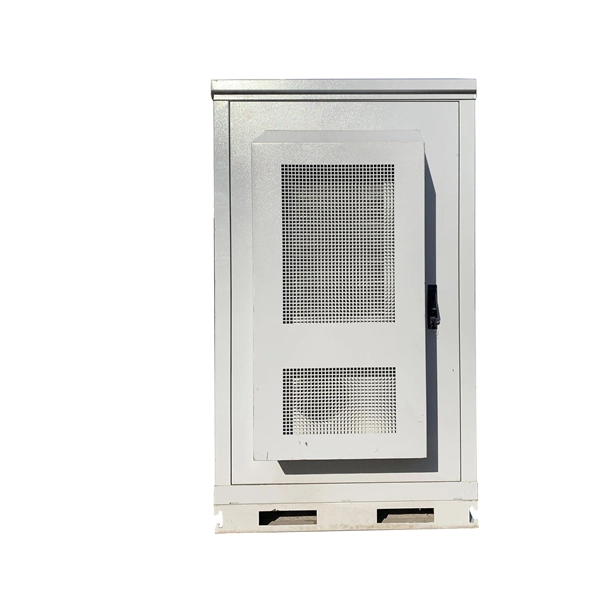

Choose a dry, accessible, and well-ventilated location, away from water, flammable, explosive, or corrosive substances. For residential boxes, the recommended height is around 1.5 meters above the ground, while industrial boxes may vary depending on surrounding equipment and space . Ensure there is enough clearance around the box for maintenance and ventilation. If installed outdoors, use a waterproof enclosure and consider additional protection like a rain cover or dehumidifier .
Tools and Materials
Prepare essential tools such as screwdrivers, wire strippers, multimeter, and insulation resistance tester. Materials include the distribution box itself, circuit breakers, fuses, terminal blocks, wires, ties, and insulating tape . Verify that all components are undamaged and meet electrical specifications.
Installation Steps
- Power Off: Ensure the main power supply is completely turned off and verify with a tester to prevent electric shock .
- Mounting the Box: Securely fix the distribution box to the wall or mounting surface at the chosen height, ensuring it is stable and accessible .
- Incoming Power Connection: Connect the incoming live wire to the main terminal, the neutral wire to the neutral terminal block, and the grounding wire to the grounding terminal block .
- Circuit Breakers and Outgoing Circuits: Install circuit breakers in their designated slots. Connect each outgoing circuit wire to its corresponding breaker, ensuring proper labeling for safety and future maintenance .
- Wiring Method: For a typical setup, use a five-wire system: three-phase lines (A, B, C), one neutral, and one ground. Single-phase loads use one phase, neutral, and ground; three-phase loads use all three phases plus ground .
- Inspection and Testing: After wiring, perform visual checks and use a multimeter to verify connections, insulation, and absence of short circuits .
- Final Safety Measures: Ensure all exposed wires are insulated, and protective devices like fuses, breakers, and surge protectors are properly installed .
Compliance and Maintenance
Follow local electrical codes (NEC, IEC, or regional standards) and use certified components (UL/CE). Label all circuits clearly and schedule regular inspections and maintenance to ensure long-term reliability . Modular designs can facilitate future upgrades or expansions. By following these steps, a distribution box can be installed safely, efficiently, and in compliance with electrical standards, ensuring reliable power distribution and protection for all connected circuits.
