8-core fiber optic terminal box configuration method

An 8-core fiber optic terminal box is configured by mounting the box, routing and splicing fibers, connecting drop cables, managing fiber bend radius, and testing for signal integrity.Step 1: Assess and Prepare

Before installation, evaluate your network requirements and select a suitable location for the terminal box. Consider proximity to the main network hub, accessibility for maintenance, and space for future expansion. Gather necessary tools and equipment, including fiber optic cables, connectors, splice trays, cable management accessories, and safety gear .

Step 2: Mounting the Terminal Box

Securely mount the terminal box using brackets or screws on a wall, rack, or pole. Ensure proper grounding and position the box away from electromagnetic interference sources. The box should be stable and accessible for maintenance .

Step 3: Routing Fiber Optic Cables

Route the feeder and drop cables into the terminal box through designated entry ports. Strip protective coatings according to manufacturer guidelines. Maintain a fiber bend radius of at least 40mm to prevent signal loss or damage .

Step 4: Splicing and Connecting Fibers

• Splicing: Use fusion or mechanical splicing to join fibers. Place spliced fibers into splice trays or cassettes for protection and organization .

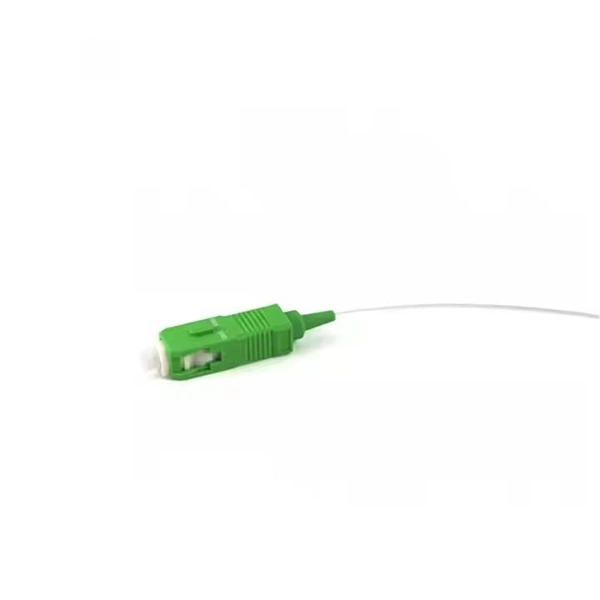

• Connector Termination: Connect fibers to the appropriate ports using SC, LC, FC, or ST connectors depending on your network design. Ensure each fiber is correctly labeled for easy identification .

Step 5: Cable Management

Organize fibers using cable management rods or guides to prevent tangling and maintain proper bend radius. Store excess fiber in loops within the box to allow future adjustments or expansions .

Step 6: Testing and Verification

After connections are complete, test each fiber for signal integrity using an optical power meter or OTDR (Optical Time Domain Reflectometer). Verify that all fibers meet required transmission standards and troubleshoot any issues such as loose connections or damaged fibers .

Step 7: Maintenance

Regularly inspect the terminal box for dust, dirt, or physical damage. Clean connectors with compressed air or lint-free wipes with isopropyl alcohol. Replace any damaged components promptly to maintain optimal performance .

Additional Tips

• Use waterproof or IP-rated boxes for outdoor installations to protect against environmental factors .
• Label all fibers clearly to simplify future maintenance and network expansion .
• Reserve unused cores for future network growth to avoid reconfiguration . By following these steps, an 8-core fiber optic terminal box can be efficiently configured, ensuring reliable connectivity and easy maintenance in FTTx or other fiber optic network deployments.
