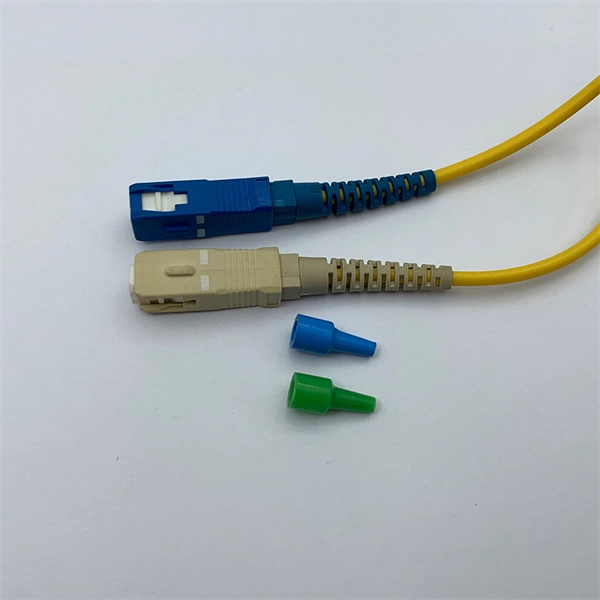

FTTR fiber optic cable connection to router

FTTR fiber optic cables connect to a router via an Optical Network Terminal (ONT) or Optical Network Unit (ONU), which converts optical signals into Ethernet for your router.Understanding FTTR Architecture

FTTR (Fiber to the Room) extends fiber directly into each room, providing ultra-fast, low-latency connections for Wi-Fi 6/7 distribution . Unlike traditional FTTH, where fiber terminates at a single household gateway, FTTR uses in-room ONUs or integrated access points to maintain a dedicated fiber backbone to every room . The main components include:

• Optical Line Terminal (OLT): Located at the service provider's central office, distributing optical signals downstream.
• ONT/ONU at Home Entrance: Converts optical signals into Ethernet or Wi-Fi signals and can branch fiber deeper into the home.
• In-room Fiber Cabling: Ultra-thin, bend-insensitive fiber cables routed along walls or ceilings to each room .
• In-room Access Points: Provide Wi-Fi coverage using the fiber backbone, supporting seamless roaming and high-speed connections .

Step-by-Step Connection to a Router

1. Connect Fiber to ONT/ONU: The fiber drop cable from the building's distribution point connects to the ONT/ONU's optical port. Handle the fiber connector carefully, removing dust caps and aligning the key or tab until it clicks securely .
2. Ethernet Link to Router: After the ONT/ONU converts the optical signal, use a standard Ethernet cable to connect the ONT/ONU's LAN or Ethernet output port to the WAN/Internet port on your router . This allows your router to distribute the internet to devices via Wi-Fi or wired connections.
3. Power and Placement: Both the ONT/ONU and router require continuous power. Place them near electrical outlets in dry, ventilated areas, ideally with surge protection . Start by powering the ONT/ONU first to establish a connection with the provider's network, then power on the router.
4. Verify Connection: Check the ONT/ONU status lights. A solid green power light indicates proper operation. The router should detect the WAN connection and provide internet access to connected devices .

Advantages of FTTR

• Gigabit Speeds in Every Room: FTTR supports rates up to 10 Gbps, ensuring consistent high-speed connectivity .
• Low Latency and Reliable Wi-Fi: Ideal for gaming, 4K/8K streaming, VR, and multi-user environments .
• Seamless Roaming: Wi-Fi 6/7 access points can share the same SSID, allowing devices to move between rooms without interruption .
• Future-Proof Infrastructure: Compliant with modern fiber standards (G.652, LC-APC connectors), supporting long-term network upgrades . By following these steps, FTTR ensures a robust, high-performance home network, bridging optical fiber directly to your router and in-room access points for optimal coverage and speed.
