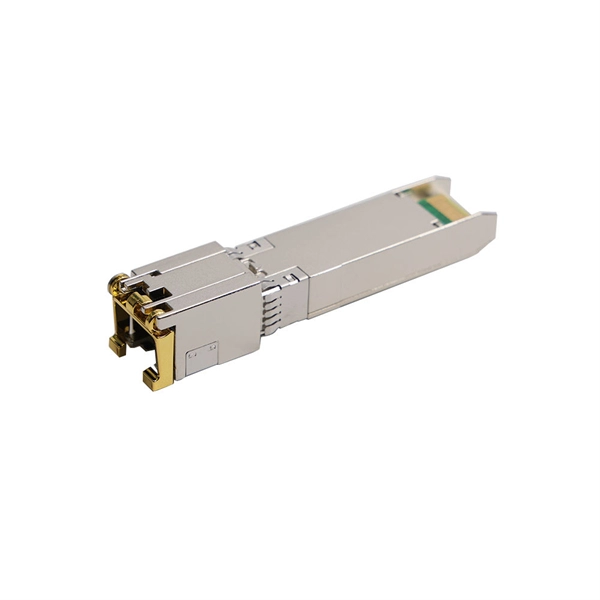

Principles of Optical Modules

ODN and passive infrastructure knowledge brief Published 13 Apr 2024

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Optical modules convert electrical signals into optical signals for transmission over fiber and then back into electrical signals at the receiving end, enabling high-speed optical communication.Working Principle

Optical modules operate at the physical layer of the OSI model and serve as the core interface between electrical network devices and optical fibers. Their primary function is electro-optical and photo-electric conversion. At the transmitting end, an electrical signal enters the module and is processed by an internal driver chip, which modulates a laser diode (LD) or light-emitting diode (LED) to emit an optical signal at the corresponding bit rate. This optical signal travels through the fiber to the receiving end, where a photodetector diode converts it back into an electrical signal, which is then amplified and output at the original bit rate .

Key Components
  1. Transmitter Optical Sub-Assembly (TOSA): Converts electrical signals into optical signals using a light source (LD or LED), optical interface, and monitoring photodiode. Laser diodes are preferred for high-speed, long-distance transmission due to their narrow spectral linewidth and high coupling efficiency, while LEDs are suitable for low-speed, short-distance links .
  2. Receiver Optical Sub-Assembly (ROSA): Converts incoming optical signals into electrical signals using a photodetector. It may include preamplifiers and limiting amplifiers to ensure signal integrity .
  3. Functional Circuits: Include driver chips, automatic power control (APC) circuits, and main control boards to regulate signal modulation, optical power, and overall module performance .
  4. Optical Interfaces: Connect the module to fiber cables, ensuring efficient light coupling and minimal loss .
Performance Parameters
  • Average Optical Power: The intensity of light emitted by the transmitter, influenced by the proportion of "1"s in the data signal .
  • Extinction Ratio: Measures the ability to distinguish between "1" and "0" signals, indicating laser efficiency .
  • Receiver Sensitivity: The minimum optical power the receiver can detect while maintaining a low bit error rate (BER), critical for reliable communication .
  • Overload Optical Power: Maximum optical power the receiver can handle without saturation or signal distortion .
Applications

Optical modules are widely used in data centers, telecom networks, and high-speed computing, supporting various form factors like SFP, SFP+, QSFP, and CFP, each designed for specific data rates and transmission distances . They are essential for enabling high-speed, long-distance, and low-loss optical communication. By understanding these principles, network engineers can select appropriate optical modules, optimize performance, and troubleshoot fiber optic links effectively.
