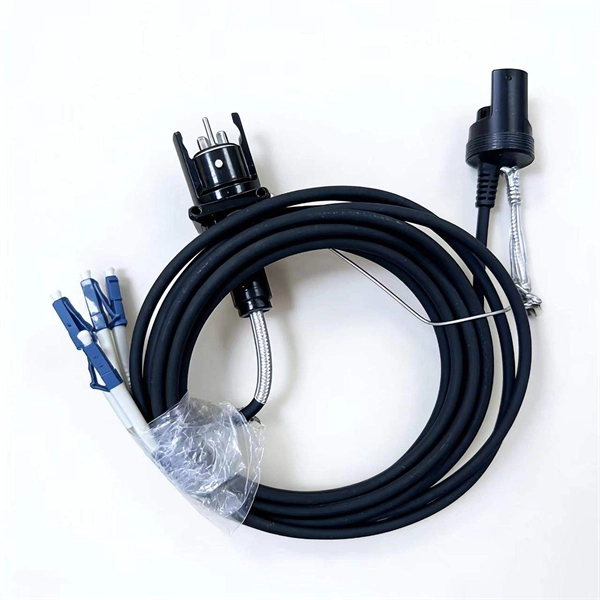

Fiber Optic Integrated Patch Panel

A fiber optic network integrated patch panel is a centralized enclosure that organizes, terminates, and manages fiber optic connections while supporting high-density, scalable, and modular network deployments.Overview

A fiber optic patch panel serves as a hub for terminating, routing, and protecting fiber optic cables. It provides a static interface between permanent backbone cabling or outside plant (OSP) fibers and the dynamic patching environment connecting to active network equipment, such as switches or optical line terminals (OLT) in FTTH networks . Integrated patch panels combine termination, routing, and modular connectivity in a single enclosure, often supporting pre-terminated cassettes or pigtails for faster deployment and reduced field errors .

Key Features

• High-Density Support: Modern integrated panels can accommodate hundreds of fibers in a compact 1U or 2U rack space, with configurations like Base-8 or Base-16 MTP® for scalable migration from 10G to 400G/800G networks .
• Modular Design: Panels often use cassettes or adapter plates that allow easy upgrades, maintenance, and moves, adds, or changes (MACs) without disrupting active services .
• Bend Radius Protection: Proper routing and bend radius management prevent micro-bending losses, maintaining signal integrity and optical link budgets .
• Slide-Out vs Fixed Trays: Slide-out trays provide drawer-like access for technicians to reach internal splices and connectors without disturbing adjacent ports, while fixed panels require front and rear access .
• Standards Compliance: Panels are designed to meet TIA-568.3-E and ISO/IEC 11801 standards, ensuring interoperability and acceptable insertion loss .

Types and Configurations

• Rack-Mount Panels: Fit standard 19-inch or 23-inch racks, ideal for data centers and server rooms, supporting high port density and centralized management .
• Wall-Mount Panels: Compact solutions for FTTH, FTTB, or small office networks, providing organized terminations in limited spaces .
• Outdoor or Industrial Panels: Designed for harsh environments, offering protection against moisture, dust, and temperature variations .
• Pre-Terminated Panels: Factory-installed pigtails or complete cable assemblies reduce field termination errors and accelerate deployment .

Benefits

• Simplified Maintenance: Centralized organization allows easy troubleshooting, patching, and upgrades without disturbing the main cabling infrastructure .
• Scalability: Modular and high-density designs enable network growth without replacing the entire panel .
• Fiber Protection: Safeguards fragile fibers from physical damage and ensures consistent signal quality .
• Operational Efficiency: Reduces deployment time and errors, especially in high-density environments where manual handling of individual fibers is challenging .

Considerations for Deployment

• Balance theoretical density with practical serviceability; extremely high-density panels may complicate patch cord access .
• Ensure separate routing for single-mode and multi-mode fibers to prevent cross-connection errors .
• Evaluate rack unit size (1U, 2U, 4U) based on fiber count and available space .
• Consider modular cassettes for future-proofing and easy migration to higher-speed networks . Integrated fiber optic patch panels are essential for modern network infrastructures, providing a flexible, scalable, and organized solution for managing complex fiber deployments while maintaining high performance and reliability.
