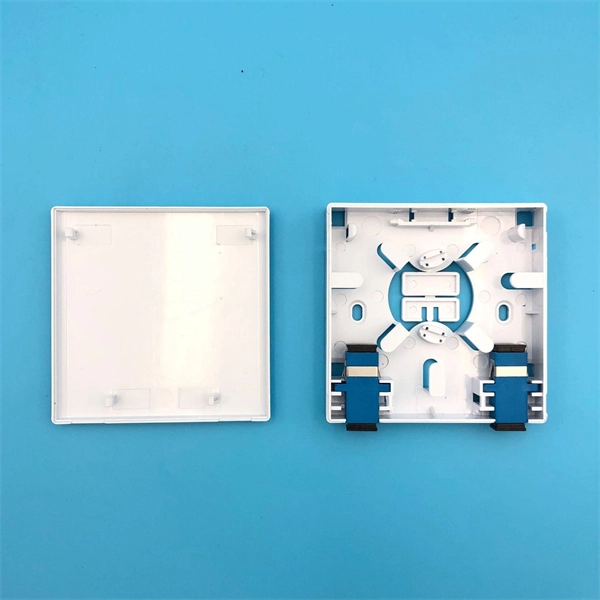

Damage Assessment of Communication Optical Cables

Damage assessment of communication optical cables involves identifying faults, testing fiber integrity, and implementing repair or preventive measures to maintain network reliability.Common Types of Damage
  1. Cable Breaks and Cuts: Complete severing of the fiber, often caused by construction, natural disasters, vandalism, or accidental handling, results in total signal loss and requires immediate repair ( ).
  2. Crushing or Deformation: Mechanical pressure from heavy equipment, traffic, or improper installation can deform the cable, leading to signal attenuation ( ).
  3. Microbends and Macrobends: Small-scale distortions (microbends) or excessive curvature (macrobends) cause light leakage and signal degradation. These are often due to tight routing or improper handling ( ).
  4. Connector and Splice Failures: Faults at transition points between fibers can result from contamination, misalignment, or poor splicing, affecting signal continuity ( ).
  5. Water Ingress and Moisture: Penetration of water into loose-tube or slotted-core cables can freeze and expand, damaging fibers, especially in underground or marine installations ( ).
  6. Temperature Extremes: Rapid thermal cycling or exposure to extreme heat or cold can stress the fiber and its protective materials, causing gradual degradation ( ).
Damage Assessment Techniques
  1. Visual Inspection: Technicians check for cuts, abrasions, kinks, or improper routing. This is the first step in identifying obvious physical damage ( ).
  2. Optical Time Domain Reflectometry (OTDR): OTDR is used to locate faults along the fiber by measuring reflected light, identifying breaks, bends, or splices with excessive loss ( ).
  3. Insertion Loss Testing: Measures total optical loss to ensure the fiber meets design specifications and signal budgets ( ).
  4. Continuity Testing: Confirms that each fiber core is intact and correctly mapped, essential for long-distance or complex networks ( ).
  5. Data Analytics: Historical inspection and test data can predict likely failure points, enabling proactive maintenance ( ).
Repair and Restoration
  • Splicing: Damaged fibers are joined using fusion splicing (melting fibers together) or mechanical splicing (using connectors) ( ).
  • Cable Reinstatement: After repair, the cable sheath is replaced, and proper routing and protection are ensured.
  • Testing and Documentation: Post-repair testing with OTDR and power meters confirms signal integrity, and detailed records are maintained for future maintenance ( ).
Preventive Measures
  • Use armored or reinforced cables in high-traffic areas.
  • Adhere to manufacturer bend-radius guidelines and employ proper cable management.
  • Install water-blocking features and sealed enclosures for underground or marine cables.
  • Monitor environmental conditions and perform regular inspections to detect early signs of degradation ( ).
Conclusion

Effective damage assessment of communication optical cables combines visual inspection, advanced testing, and data analysis to identify faults, guide repairs, and prevent service disruptions. Implementing preventive measures and maintaining detailed documentation ensures network reliability and longevity.
