Fiber optic pigtail patch cord processing method

Fiber optic pigtail patch cords are manufactured through a precise multi-step process involving cable preparation, connector attachment, curing, polishing, and rigorous testing to ensure high-quality performance.Overview of Pigtails and Patch Cords

A fiber optic pigtail is a short fiber with a factory-terminated connector on one end and bare fiber on the other, designed for fusion or mechanical splicing to a main cable. A patch cord has connectors on both ends and is used for flexible connections in optical distribution frames or devices. Pigtails provide factory-grade quality, low insertion loss, and high return loss, making them ideal for permanent terminations, while patch cords are used for reconfigurable connections ( ).

Production Steps

1. Material Preparation
   • Select the appropriate fiber type (single-mode or multi-mode) and connector type (LC, SC, ST, FC, MTP, etc.) ( ).
   • Fiber cables are supplied on reels and cut to required lengths using automated cutting machines for precision and efficiency ( ).
2. Cable Stripping and Identification
   • Use a jacket stripper to remove the outer jacket (commonly 3.0 mm, 2.0 mm, or 0.9 mm).
   • Strip the tight-buffered inner fiber using a miller stripper.
   • Identify fibers for duplex or multi-fiber assemblies ( ).

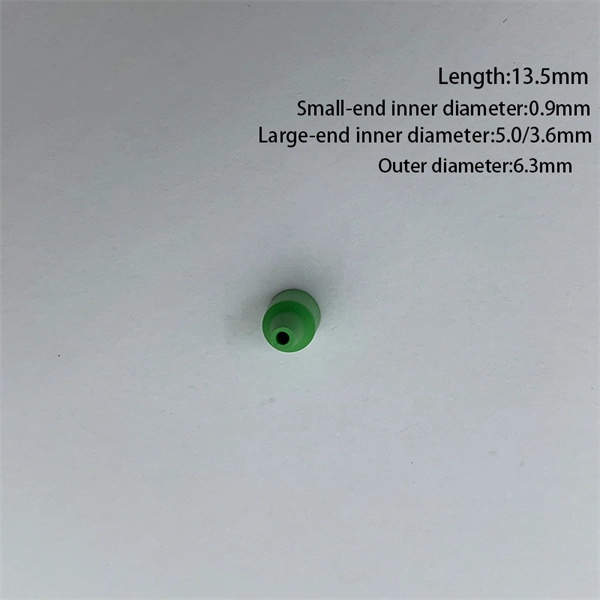

3. Connector Attachment
   • Apply epoxy glue (commonly 353 epoxy) to the fiber and insert it into the ferrule of the connector.
   • Cure the epoxy using vertical or horizontal solidification furnaces to secure the fiber in place ( ).
4. Polishing
   • Polish the connector end using specialized jigs for UPC or APC geometry.
   • Polishing ensures the fiber core aligns precisely with the ferrule for minimal insertion loss ( ).
5. Cleaning and Inspection
   • Clean the half-finished patch cords with ultrasonic cleaning machines.
   • Inspect the connector end-face under 400x–600x microscopes to ensure cleanliness and proper alignment ( ).
6. Testing
   • Perform insertion loss (IL) and return loss (RL) tests to verify optical performance.
   • High-precision interferometry or video fiber microscopes may be used for quality control ( ).

Industrial Production Considerations

• Automated production lines increase efficiency, allowing hundreds of patch cords per hour.
• Equipment includes cable cutting machines, crimpers, epoxy injection systems, curing ovens, polishing machines, and testing stations ( ).
• Following standards like Telcordia GR-326-CORE ensures global compatibility and reliability ( ).

Summary Workflow

1. Bare fiber → cabled and cut to length.
2. Fiber → stripped, identified, and prepared.
3. Connector → epoxy applied, fiber inserted, and cured.
4. Connector end → polished and cleaned.
5. Finished pigtail → inspected and tested.
6. Pigtails → fusion-spliced to main cables; patch cords → used for flexible connections ( ). This structured process ensures that fiber optic pigtail patch cords meet high-performance standards, providing reliable connectivity in telecom, data centers, and FTTH networks.
