What are some techniques for laying fiber optic pigtails

Fiber optic pigtails should be laid in protected environments, such as splice trays, ODF panels, or terminal boxes, with armored or waterproof options used where physical stress or moisture is a concern.Placement and Environment

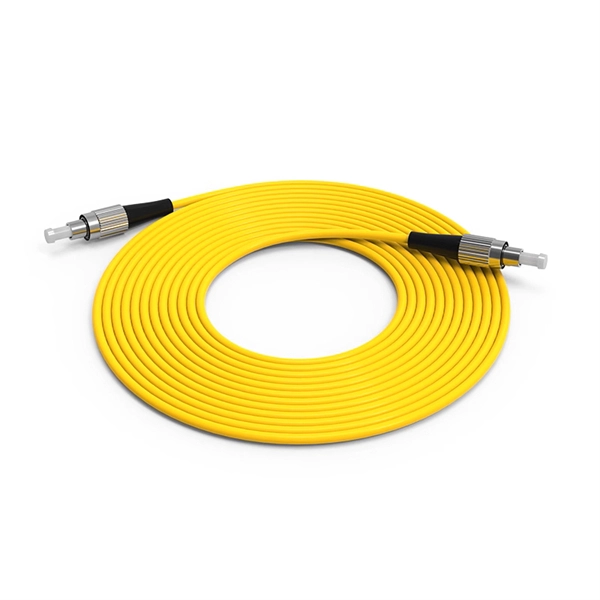

Fiber optic pigtails are designed with a factory-terminated connector on one end and a bare fiber on the other, which is spliced to the main fiber cable in the field. Indoor pigtails are lightweight and flexible, suitable for protected environments like optical distribution frames (ODFs), splice trays, and terminal boxes, but they should not be exposed to moisture, UV light, or mechanical stress . Armored pigtails include a metal protective layer, making them ideal for areas with potential physical impact, such as industrial telecom rooms or outdoor-access panels . Waterproof pigtails are built with stainless steel armored sheathing and waterproof connector housings, suitable for outdoor or high-moisture environments .

Installation Considerations

• Splicing: The bare fiber end of a pigtail is typically fusion spliced or mechanically spliced to the incoming fiber cable to create a low-loss, permanent connection .
• Routing: Pigtails should be routed carefully to avoid sharp bends, kinks, or tension that could damage the fiber. Bend radius guidelines must be followed to maintain signal integrity .
• Identification: Multi-fiber pigtails use color-coded fibers according to TIA-EIA-598-A standards, which helps in tracing and managing connections in high-density installations .
• Protection: Bare fibers should never be left exposed in ducts or conduits; they must be enclosed in trays, panels, or protective tubing to prevent mechanical damage and environmental exposure .

Practical Applications

• Data Centers: Single-mode or multi-fiber pigtails are used to terminate bulk fiber cables into patch panels or ODFs, enabling organized and reliable connections .
• FTTH Deployments: Pigtails connect drop cables to customer premises equipment, often requiring armored or waterproof types for outdoor exposure .
• High-Density Installations: Ribbon or multi-fiber pigtails allow efficient bulk splicing, saving installation time and space in dense network environments . By following these guidelines, fiber optic pigtails can be laid safely and efficiently, ensuring long-term network performance and minimizing signal loss or damage. Proper selection of pigtail type and careful routing are critical for both indoor and outdoor deployments .
