GPON Main Equipment Components

The main components of a GPON network are the Optical Line Terminal (OLT), Optical Network Unit/Terminal (ONU/ONT), and passive optical splitters.1. Optical Line Terminal (OLT)

The OLT is the central device located at the service provider's end, typically in a data center. It acts as the network manager, sending downstream optical signals to end users and receiving upstream signals from ONUs/ONTs. The OLT converts electrical signals into optical signals for transmission and vice versa for received data. Downstream signals are transmitted at 1490 nm for data/voice and 1550 nm for video, while upstream signals are received at 1310 nm to prevent interference. The OLT aggregates traffic from multiple users and interfaces with core Ethernet networks for further routing ( ).

2. Passive Optical Splitters

Passive optical splitters are unpowered devices that divide a single optical signal from the OLT into multiple signals for distribution to end users. Split ratios commonly range from 1:4 to 1:64, depending on network design. Splitters can be deployed in a centralized manner (one splitter serving many users) or cascaded for more complex branching networks. They enable the point-to-multipoint architecture of GPON, allowing a single fiber to serve multiple subscribers without active electronics in the distribution path ( ).

3. Optical Network Unit/Terminal (ONU/ONT)

The ONU/ONT is installed at the customer premises, such as homes or businesses. It converts the incoming optical signal into electrical signals for devices like computers, phones, or TVs. ONUs/ONTs also handle upstream transmission back to the OLT using time-division multiple access (TDMA) to prevent collisions. Some ONTs provide additional features like AES encryption for secure communication ( ).

4. Optical Distribution Network (ODN)

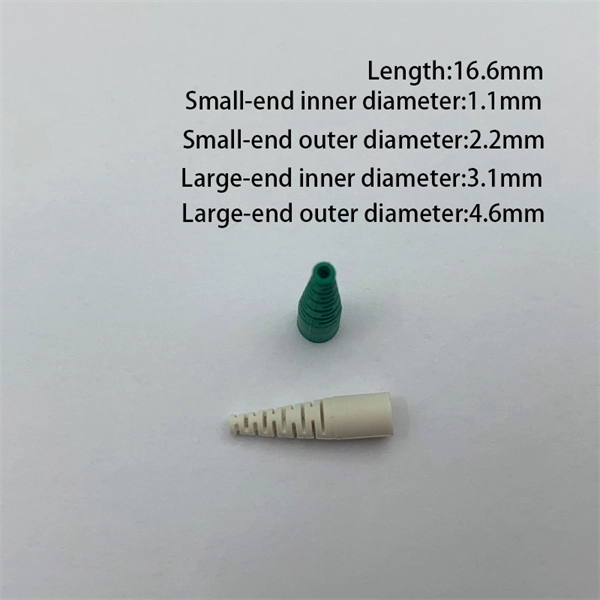

While not a single device, the ODN refers to the fiber cabling and passive components connecting the OLT to ONUs/ONTs. It includes fiber cables, connectors, adapters, and enclosures, forming the physical medium for signal transmission. The ODN ensures signal integrity and supports distances up to 20 km in typical GPON deployments ( ).

Summary

A GPON network relies on the OLT to manage and transmit data, passive splitters to distribute signals efficiently, and ONUs/ONTs to terminate the optical signal at the user end. The ODN provides the physical infrastructure connecting these components. Together, these elements enable high-speed, cost-effective, and scalable broadband delivery over fiber optics ( ).
