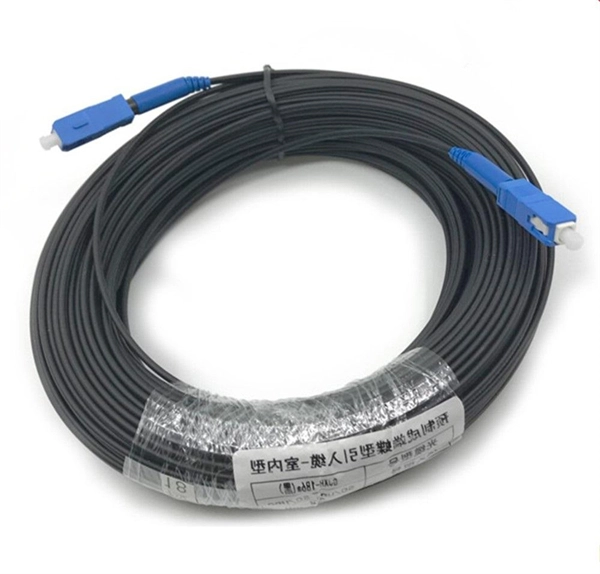

Items used for photovoltaic fiber optic cable splicing

Photovoltaic fiber optic cable splicing requires specialized tools for precise alignment, fusion or mechanical joining, protection, and testing to ensure minimal signal loss and long-term reliability.Core Splicing Tools

Fusion Splicing Equipment

• Fusion Splicer: Aligns and fuses fiber cores using an electric arc, creating a permanent, low-loss connection (typically 0.02 dB) suitable for high-performance photovoltaic networks .
• Fiber Cleaver: Precisely cuts fiber ends at a flat angle to ensure optimal fusion and minimal signal reflection .
• Fiber Stripper: Removes protective coatings and jackets from the fiber to expose the bare glass for splicing .
• Alcohol Wipes and Cleaning Tools: Clean the fiber ends to prevent contamination during splicing .
• Heat-Shrink Splice Sleeves: Protect the fused joint mechanically and environmentally, restoring strength to the splice . Mechanical Splicing Equipment
• Mechanical Splice Sleeves or Connectors: Align fibers physically using gels or adhesives to reduce signal loss (typically 0.2–0.5 dB) for temporary or field installations .
• Tweezers and Precision Tools: Assist in handling delicate fibers during alignment .
• Microscope or Inspection Scope: Ensures proper core alignment and checks for defects in the splice .

Supporting Tools and Accessories

• Cable Management Items: Cable ties, trays, and organizers to secure fibers during and after splicing .
• Utility Knives and Scissors: For cutting Kevlar strands and fiber jackets .
• Screwdrivers and Adjustment Tools: For fine-tuning splicing equipment or enclosures .
• Optical Power Meter and OTDR (Optical Time Domain Reflectometer): Test and verify splice quality, signal loss, and continuity .
• Splicing Cart or Portable Kit: Facilitates organized transport of tools for field installations .

Considerations for Photovoltaic Fiber Optic Splicing

Photovoltaic fiber optic systems often require high reliability and low insertion loss due to long-distance signal transmission and environmental exposure. Fusion splicing is generally preferred for permanent installations, while mechanical splicing may be used for temporary connections or emergency repairs. Proper preparation, alignment, and protection of the splice are critical to maintain signal integrity and durability in outdoor or high-temperature photovoltaic environments . By assembling a comprehensive splicing kit with these tools and accessories, technicians can ensure efficient, precise, and durable fiber optic connections in photovoltaic applications.
