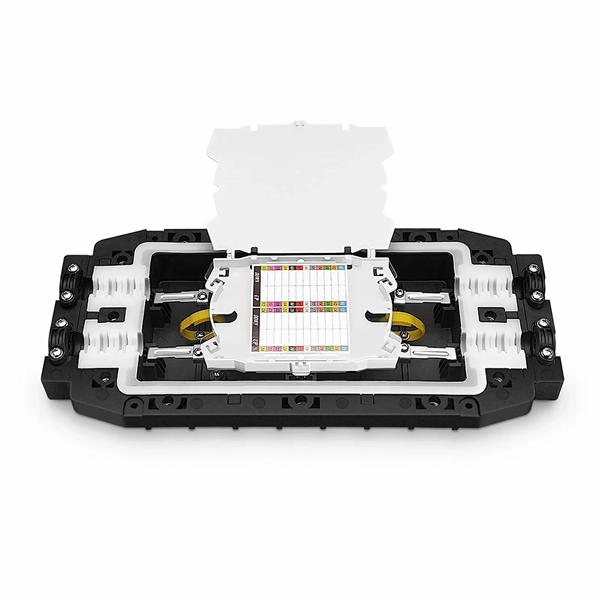

How to connect the 48-core cable in the fiber optic distribution box

To connect a 48-core fiber optic cable, carefully route, terminate, and secure each fiber to the adapter panel while maintaining proper bend radius and organization.Step 1: Prepare the Distribution Box

Install the fiber optic distribution box in its designated location, whether wall-mounted or rack-mounted. Ensure the box is oriented correctly and securely fixed using brackets and screws. Verify that the cable entry points are accessible and that the box has sufficient space for routing all 48 fibers without tension .

Step 2: Introduce the 48-Core Cable

Feed the 48-core cable through the cable inlet using a suitable grommet to protect the cable from sharp edges. Ensure the cable is long enough to allow the front panel of the distribution box to be fully extended without stressing the fibers. Typically, a minimum slack of around 31 inches is recommended for the main trunk inside the box .

Step 3: Route the Fiber Trunk

Use cable ties and bend radius control clips to secure the main fiber trunk along the designated routing paths. Avoid exceeding the minimum bend radius of the fibers to prevent signal loss or damage. Organize the fibers neatly along spools or guides provided in the box to maintain order and facilitate future maintenance .

Step 4: Terminate and Connect Individual Fibers

• If using pre-terminated pigtails or branch fibers, connect each fiber to the corresponding port on the adapter panel, ensuring a one-to-one correspondence between the fiber and the port .
• Secure the adapter panel to the front panel of the distribution box using the provided clips or fasteners.
• For splicing, use fusion splicing or mechanical splicing as appropriate, and protect the splices with heat-shrink sleeves or splice trays.

Step 5: Manage Excess Fiber

Store any excess fiber in the slack management area of the box, typically using loops or spools. Ensure that the fibers are not bent sharply or compressed. Proper slack management prevents future damage and simplifies troubleshooting .

Step 6: Test and Verify

After all fibers are connected, perform optical testing to verify signal integrity and ensure minimal loss. Document the port assignments and fiber routing for future reference. Regular inspections and maintenance will help maintain optimal performance . By following these steps, you can safely and efficiently connect a 48-core fiber optic cable in a distribution box, ensuring organized, protected, and scalable fiber management.
