How to connect the patch cord to a fiber optic transceiver

ODN and passive infrastructure knowledge brief Published 30 Mar 2025

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

To connect a fiber optic patch cord to a transceiver, ensure proper connector type, clean the connectors, respect bend-radius limits, and carefully insert the patch cord into the transceiver port.Step-by-Step Guide

1. Identify the Correct Patch Cord

  • Determine whether you need single-mode (OS1/OS2) for long-distance links or multimode (OM3/OM4/OM5) for short-distance, high-speed connections within a data center .
  • Choose the appropriate connector type compatible with your transceiver, commonly LC for modern QSFP modules or SC for legacy equipment . 2. Inspect and Clean Connectors
  • Always clean the fiber connectors before mating, even if they appear clean, using fiber cleaning tools or wipes .
  • Avoid touching the fiber endface to prevent contamination, which can cause signal loss or damage. 3. Check Cable Orientation
  • For duplex cables, ensure the Tx (transmit) and Rx (receive) ends are correctly aligned with the transceiver ports .
  • Single-fiber simplex cables should also match the transceiver's transmit and receive ports. 4. Respect Bend Radius
  • Maintain the minimum bend radius specified for the patch cord to prevent micro-bends and attenuation .
  • Avoid sharp bends, kinks, or excessive tension on the cable. 5. Insert the Patch Cord
  • Gently insert the connector into the transceiver port until it clicks or locks in place.
  • For push-pull connectors like LC or SC, ensure the latch engages fully; for threaded connectors like FC, screw them in securely . 6. Secure and Route the Cable
  • Use cable management trays or guides to route the patch cord neatly, avoiding tangles and stress points .
  • Label both ends for easy identification and future maintenance. 7. Verify the Connection
  • Check the link status on the network device to confirm proper optical signal transmission.
  • If the link fails, inspect the connectors for dirt, damage, or misalignment.
Additional Tips
  • Do not mix connector types (e.g., SC/APC with SC/UPC) as incompatible endfaces can damage the transceiver and degrade performance .
  • Use appropriate jacket types (PVC, LSZH, OFNR, OFNP) based on your installation environment and fire safety requirements .

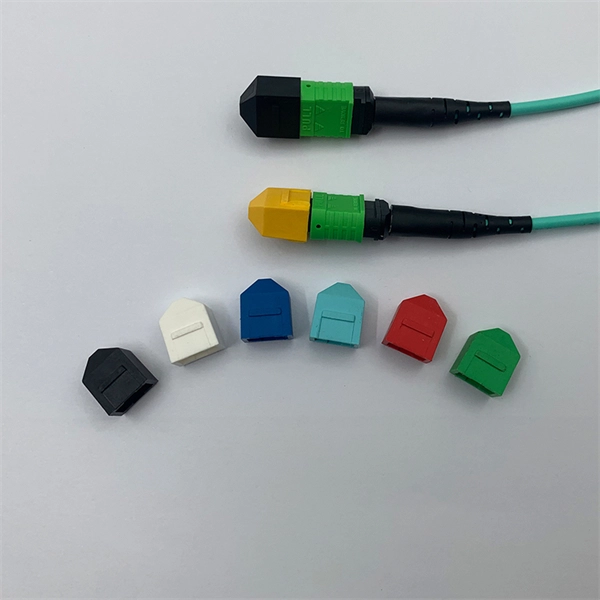

  • For MPO/MTP connectors, ensure correct polarity, gender, and key alignment before insertion . Following these steps ensures a reliable, low-loss connection between your fiber optic patch cord and transceiver, maintaining network performance and longevity.
