What are the functions of fiber optic transmission panels

ODN and passive infrastructure knowledge brief Published 02 Jul 2026

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Fiber optic transmission panels, also known as fiber patch panels or optical distribution frames (ODFs), serve as central hubs for terminating, organizing, protecting, and distributing optical fibers in a network.Core Functions

Termination and Distribution: Fiber optic panels provide a centralized point where multiple fiber optic cables converge, allowing for secure termination and organized distribution of optical signals to network equipment . Cable Management: They maintain neat and structured routing of fiber cables, preventing tangling, minimizing stress on fibers, and reducing the risk of accidental disconnections . Integrated guides, trays, and strain relief mechanisms help preserve signal integrity and extend cable lifespan . Protection: Panels safeguard delicate fiber strands from physical damage, dust, and environmental factors. Some panels include lockable doors or sealed enclosures for additional security and protection in harsh conditions . Maintenance and Scalability: Fiber patch panels simplify troubleshooting, upgrades, and network expansion. Technicians can access individual fibers without disturbing active connections, enabling efficient rerouting or replacement . Modular designs allow for easy addition of new connections or high-density configurations, supporting future network growth .

Types and Configurations

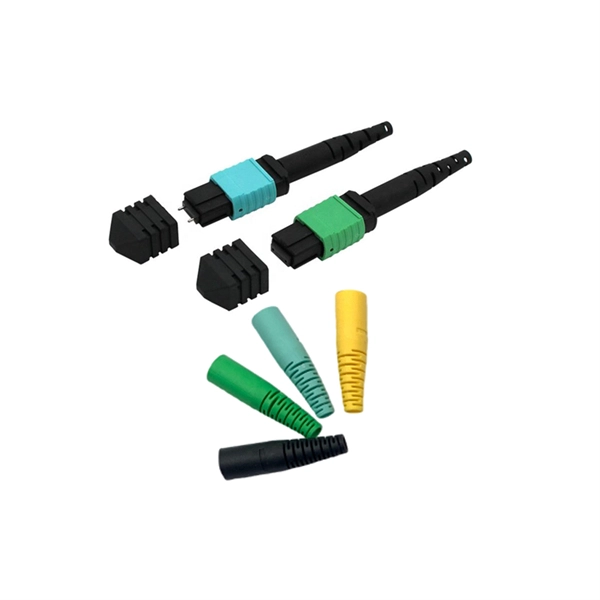

Rack-Mount Panels: Standard 19-inch or 23-inch racks are common in data centers, offering high port density and centralized structured cabling management . Wall-Mount Panels: Compact solutions for FTTH, FTTB, or small office networks, providing organized fiber terminations in limited spaces . DIN-Rail Panels: Used in industrial environments with fewer connectors, mounted on DIN rails for control panels . High-Density MPO/MTP Panels: Support multi-fiber connectors (12, 24, or 48 fibers per interface) for rapid deployment, modular scalability, and efficient polarity management in high-traffic networks . Adapter Panels: Modular interface structures within patch panels that organize connector ports, allowing independent servicing of sections without disrupting the entire network .

Key Roles in Network Infrastructure
  • Centralized Hub: Acts as the main interface between external optical cables and internal network equipment .
  • Signal Integrity: Maintains stable optical connections and reduces insertion loss by organizing fibers and connectors .
  • Space Efficiency: High-density designs maximize port capacity per rack unit, crucial for data centers and backbone networks .
  • Operational Reliability: Reduces downtime and simplifies maintenance, ensuring consistent network performance . In summary, fiber optic transmission panels are essential for efficient, scalable, and reliable network management, providing structured termination, protection, and distribution of optical fibers while supporting high-density and modular network architectures .
