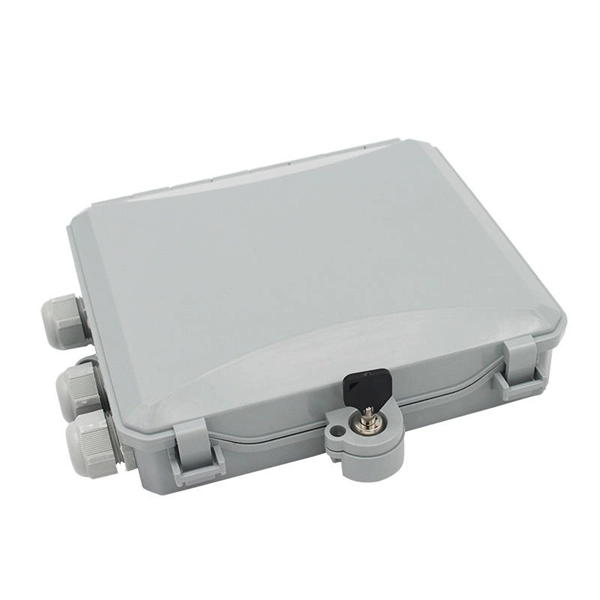

Junction boxes belong to the category of electrical enclosures used to protect and organize wire connections, and they can be classified by material, application, and environmental rating.Material-Based Categories
Junction boxes are primarily made from plastic (PVC, ABS, polycarbonate) or metal (steel, stainless steel, aluminum). Plastic boxes are lightweight, corrosion-resistant, and cost-effective, making them suitable for residential and light commercial applications. Metal boxes offer higher mechanical strength, fire resistance, and grounding options, making them ideal for industrial, outdoor, or harsh environments .
Application-Based Categories
- Residential: Small plastic junction boxes for indoor wiring, outlets, and switches .
- Commercial: Metal surface-mount boxes for durability and compliance in offices or commercial buildings .
- Industrial: Heavy-duty metal boxes, often NEMA 12 or NEMA 4X rated, for machinery wiring, factories, and harsh environments .
- Outdoor: Waterproof or weatherproof boxes (IP65/IP66 or NEMA 4X) for lighting, solar systems, and HVAC units .
- Hazardous Areas: Explosion-proof boxes for oil, gas, chemical plants, or mining operations .
Specialized Categories
Some junction boxes are designed for specific purposes:
- CCTV Junction Boxes: Protect camera connections .
- Conduit Boxes: Organize multiple conduit runs .
- Maintenance-Free Boxes: Sealed units requiring minimal upkeep .
- Multi-Gang Boxes: Accommodate multiple devices in one location .
- Round Pan or Pancake Boxes: Shallow design for ceiling fans or lights .
Environmental and Safety Ratings
Junction boxes are also categorized by IP or NEMA ratings, which define their protection against dust, water, and hazardous conditions. For example, NEMA 1 is for basic indoor use, NEMA 4X for waterproof and corrosion-resistant outdoor use, and explosion-proof boxes meet ATEX or UL Class/Division standards for flammable environments . In summary, junction boxes are electrical enclosures that can be categorized by material, application, specialized function, and environmental rating, allowing selection based on safety, durability, and compliance requirements.
