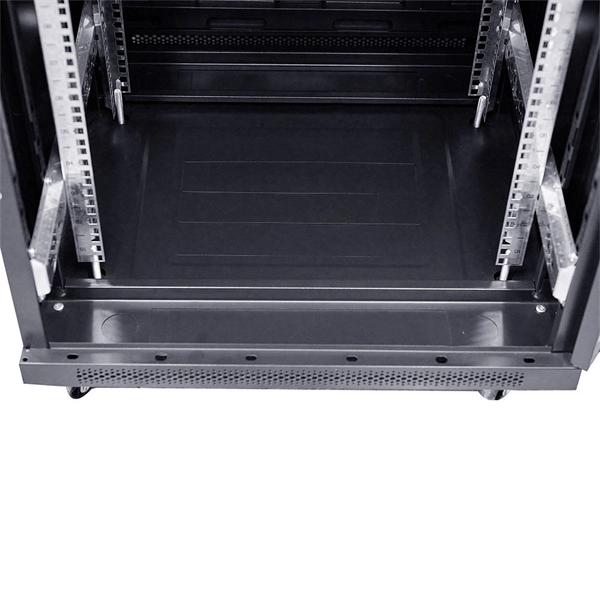

A base station's communication equipment typically includes the Baseband Unit (BBU), Remote Radio Unit (RRU), Active Antenna Unit (AAU), power supply systems, transmission/backhaul equipment, and antennas, all integrated to ensure seamless mobile connectivity.Core Equipment Components
1. Baseband Unit (BBU): The BBU is the central processing unit of a base station. It handles baseband signal processing, converting raw low-frequency signals into a format suitable for transmission. It also manages control functions and interfaces with the network management system for configuration and monitoring . 2. Remote Radio Unit (RRU): The RRU converts processed baseband signals from the BBU into radio frequency (RF) signals for wireless transmission. It also amplifies received RF signals before sending them back to the BBU for processing . 3. Active Antenna Unit (AAU): In modern 5G deployments, the AAU integrates the RRU and antenna into a single unit, improving efficiency, reducing latency, and supporting advanced features like beamforming . 4. Antennas: Base stations use various antenna types, including sector, omnidirectional, and massive MIMO arrays. The number and type of antenna elements determine coverage, capacity, and signal quality .
Power Supply Systems
Base stations require reliable power to maintain continuous operation. Key components include:
- AC Distribution Box: Distributes mains power and provides surge protection.
- Switch-Mode Power Supply: Converts AC to stable DC power for equipment.
- Battery Banks and UPS: Provide backup power during outages.
- Optional Diesel Generators: For extended power interruptions .
Transmission and Backhaul Equipment
Transmission systems connect the base station to the core network. Components include:
- Backhaul Links: Fiber, microwave, or wireless links that carry data to the network.
- Routers and Switches: Manage data routing and network traffic.
- Feeder Cables and RF Components: Connect antennas to RRUs and BBUs, including amplifiers, filters, and couplers .
Control and Monitoring
- Base Station Controller (BSC) or Control Unit: Manages frequency allocation, handovers, and network coordination.
- Monitoring Devices: Cameras, sensors, and software tools track operational status and performance in real time .
Installation and Configuration Workflow
- Site Survey and Acquisition: Evaluate coverage, terrain, and power availability.
- Civil Works: Construct tower foundations, mount antennas, and install grounding systems.
- Power Infrastructure Setup: Install rectifiers, batteries, and backup generators.
- Equipment Installation: Mount BBUs, RRUs, AAUs, antennas, and connect feeder cables.
- Configuration and Integration: Set frequency, power levels, and integrate with the network management system.
- Testing and Optimization: Conduct call tests, adjust antenna alignment, and optimize RF parameters.
- Commissioning: Final acceptance tests and handover to network operations .
Summary
A base station is a complex system where BBUs, RRUs, AAUs, antennas, power systems, and transmission equipment work together to provide reliable mobile communication. Proper configuration, integration, and testing are essential to ensure optimal coverage, capacity, and network performance, especially in 5G networks where advanced features like beamforming and massive MIMO are employed .
