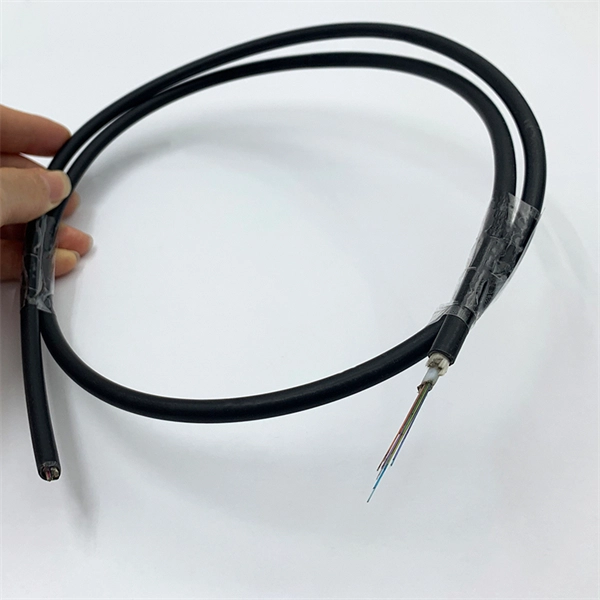

Fiber Optic Cable Loss Standards in Telecommunications

ODN and passive infrastructure knowledge brief Published 12 Sep 2024

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Fiber optic cable loss standards are defined by TIA/EIA, IEC, and FOA guidelines, specifying maximum attenuation per kilometer, connector and splice losses, and testing procedures to ensure reliable telecommunications performance.Overview of Fiber Optic Loss

Fiber optic loss, or optical attenuation, is the reduction of light signal strength as it travels through a fiber. Loss arises from intrinsic factors such as absorption, scattering, and dispersion within the fiber material, and extrinsic factors like connector misalignment, splices, and bending of the fiber . Loss is typically measured in decibels (dB) and expressed per unit length (dB/km).

Component Loss Standards
  • Fiber attenuation: For multimode fiber, typical losses are about 3 dB/km at 850 nm and 1 dB/km at 1300 nm, with maximum values per EIA/TIA-568 standards of 3.5 dB/km and 1.5 dB/km respectively . Single-mode fibers, such as ITU-T G.652, are optimized for low loss at 1310 nm and 1550 nm .
  • Connector loss: Standard adhesive/polish or fusion splice-on connectors typically have 0.3 dB loss, while prepolished/mechanical or multifiber connectors like MPOs may have up to 0.75 dB per connector .
  • Splice loss: Mechanical splices on multimode fiber are around 0.3 dB, and single-mode fusion splices are about 0.15 dB .
Testing and Measurement Standards

Fiber optic loss is verified using insertion loss testing with a light source and power meter or an optical loss test set (OLTS). Testing can be single-ended (FOTP-171) or double-ended (OFSTP-14), with connectors included according to the method . OTDR testing is used for outside plant networks to locate faults and measure segment losses, though it has inherent measurement uncertainties .

Key Standards
  • TIA/EIA-568.3-D: Defines maximum attenuation, connector and splice losses, and transmission performance for optical cables .
  • IEC 60793 / 60794: Specifies fiber and cable characteristics, including geometrical and optical properties .
  • ITU-T G.652, G.655, G.657: International standards for single-mode fibers, defining low-loss and dispersion characteristics .
  • FOA Guidelines: Provide practical field-oriented standards for insertion loss, OTDR testing, connector inspection, and loss budget calculations .
Loss Budget Calculation

A loss budget estimates the total expected loss of a fiber link by summing the losses of all components: Total Link Loss (dB) = Fiber Attenuation + Connector Loss + Splice Loss + Passive Component Losses . This estimate is used to compare against measured values to ensure the system meets design requirements. FOA provides online calculators and mobile apps to assist in field calculations .

Practical Considerations
  • Always account for measurement uncertainties; actual loss may vary slightly from calculated budgets .
  • Bidirectional testing is recommended for critical links to verify consistency.
  • Local codes (NEC/NESC) govern safety and installation clearances but do not define technical loss standards . By adhering to these standards and testing procedures, telecommunications networks can ensure reliable signal transmission, interoperability, and long-term performance.
