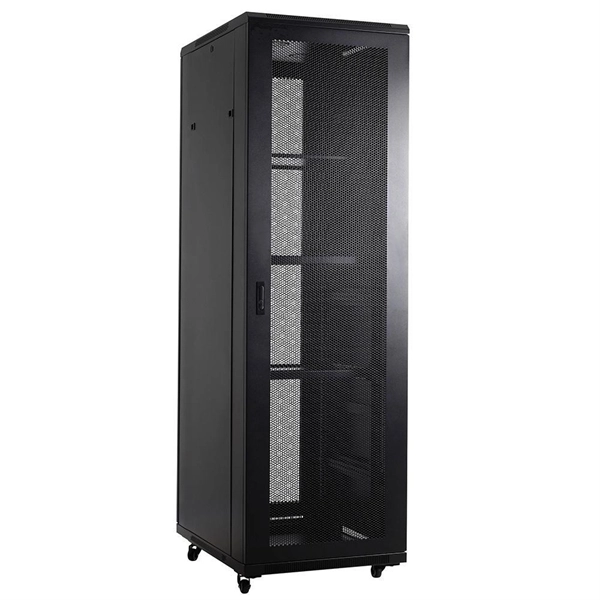

How to organize cables neatly using cable management racks in server racks

ODN and passive infrastructure knowledge brief Published 20 Apr 2023

Prepared for preliminary research by the GESTIONVAL ODN knowledge desk. Confirm network topology, split ratio, box or cabinet capacity, joint closure rating and loss budget against current standards and product documentation.

Use structured cable management racks, patch panels, and trays to route, secure, and label cables for optimal airflow, maintenance, and safety.Plan Your Cable Layout

Before touching any cables, document your existing setup and plan the routing paths. Identify all servers, switches, PDUs, and other devices, noting their positions and the type of cables (power, network, fiber) they require. Reserve the left side of the rack for power cables and the right side for network cables to prevent interference and simplify troubleshooting . Consider future expansion to avoid unnecessary relocations.

Use Patch Panels as Central Hubs

A patch panel rack mount serves as a central hub for network connections. Connect incoming cables to the patch panel, then use short patch cords to link devices. This reduces clutter, allows easy rerouting, and simplifies maintenance . Use horizontal cable managers or D-Rings below the patch panel to align patch cords neatly and maintain proper bend radius.

Install Horizontal and Vertical Cable Managers
  • Horizontal cable managers (1U or 2U) provide organized pathways between equipment, preventing sagging and interference with ventilation .
  • Vertical cable managers run along the sides of the rack, keeping vertical bundles organized and accessible from front or back. They reduce tangling and protect cables from sharp edges .
Use Cable Trays, Raceways, and Shelves
  • Cable trays and raceways route cables neatly along the sides or above the rack, reducing tangling and bending .
  • Rack shelves support non-rackmount devices and help maintain order by providing a stable platform for switches, hubs, or tools .
Secure and Label Cables
  • Use reusable Velcro straps instead of zip ties for permanent installations to allow easy modifications and prevent cable damage .
  • Label cables by function, floor, or device to simplify identification during maintenance or troubleshooting .
Maintain Airflow and Safety

Proper cable management ensures unobstructed airflow, reducing overheating and improving cooling efficiency . Avoid blocking ventilation holes and prevent excessive bending or tension on cables. Neatly organized cables also reduce tripping hazards and minimize wear and tear, extending cable lifespan .

Best Practices Summary
  1. Plan cable routes and document the setup.
  2. Use patch panels as central connection points.
  3. Install horizontal and vertical cable managers.
  4. Route cables through trays, raceways, or shelves.
  5. Secure cables with Velcro straps and label them clearly.
  6. Maintain airflow and avoid cable congestion.
  7. Group cables by type and function for easier maintenance. By following these strategies, you can achieve a clean, efficient, and scalable server rack setup that supports reliable IT operations, simplifies maintenance, and enhances safety .
