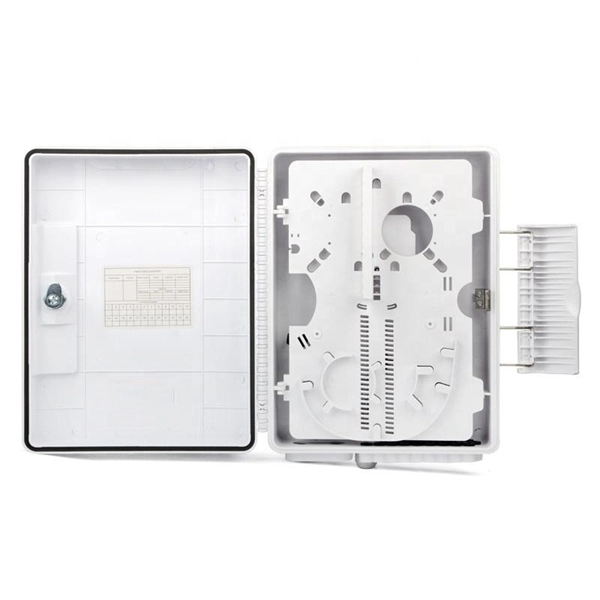

Low-voltage distribution box construction

Low-voltage distribution boxes (LVDBs) are designed to safely distribute electrical power, protect circuits, and ensure compliance with standards through proper component selection, layout, and installation.Types of LV Distribution Boxes

LVDBs are generally categorized into three types:

• Main Distribution Boards (MDB): Manage and distribute power from one or more sources to branch circuits, providing circuit breakers for each branch and allowing future expansion .
• Sub-Main Distribution Boards (SMDB): Distribute electricity from the MDB to specific zones or systems, such as HVAC or lighting circuits .
• Final Distribution Boards (FDB): Supply power to end-user devices and appliances, often incorporating MCBs or RCDs for protection against overloads and electric shock .

Key Components

• Air Circuit Breakers (ACB): Used for high-current interruption, providing short-circuit and overload protection with adjustable trip settings .
• Molded Case Circuit Breakers (MCCB): Protect circuits from overloads and short circuits; can be customized for specific energy needs .
• Miniature Circuit Breakers (MCB) and Residual Current Devices (RCD): Protect individual circuits and users from overcurrent and leakage currents .
• Busbars: Conductive bars sized according to total current and short-circuit ratings; earthing busbars should have at least 1/4 the cross-section of main busbars .
• Neutral and Earth Bars: Ensure proper termination and grounding for safety .
• Surge Protection Devices (SPD): Optional but recommended to protect against voltage spikes .

Design and Construction Considerations

1. Voltage and Load Assessment: Determine system voltage (e.g., 230V single-phase or 400V three-phase) and identify load types (lighting, sockets, motors, HVAC), .
2. Circuit Planning: Calculate total power demand, decide the number of circuits, and apply diversity factors to avoid oversizing .
3. Material and IP Rating: Choose metal or plastic enclosures and select IP rating based on environment (e.g., IP65 for outdoor use), .
4. Component Layout: Position main incomer (MCCB/MCB) and outgoing breakers logically; ensure busbars and cable containers are properly arranged for accessibility and ventilation .
5. Safety and Compliance: Follow local electrical codes, provide grounding, consider arc flash reduction measures, and ensure proper labeling of breakers and terminals .
6. Documentation: Create a single-line diagram (SLD) showing all connections and component ratings for installation and maintenance .

Installation Best Practices

• Select a dry, ventilated location away from hazardous substances .
• Ensure proper cable management to prevent overloads and short circuits .
• Perform routine maintenance and inspections to reduce equipment failure .
• Verify AIC ratings and ground fault protection according to system requirements .

Summary

Constructing a low-voltage distribution box requires careful planning, proper component selection, and adherence to safety standards. By considering load requirements, protective devices, busbar sizing, enclosure type, and compliance with electrical codes, LVDBs can provide reliable power distribution, protect equipment, and ensure worker safety in construction and facility environments .
