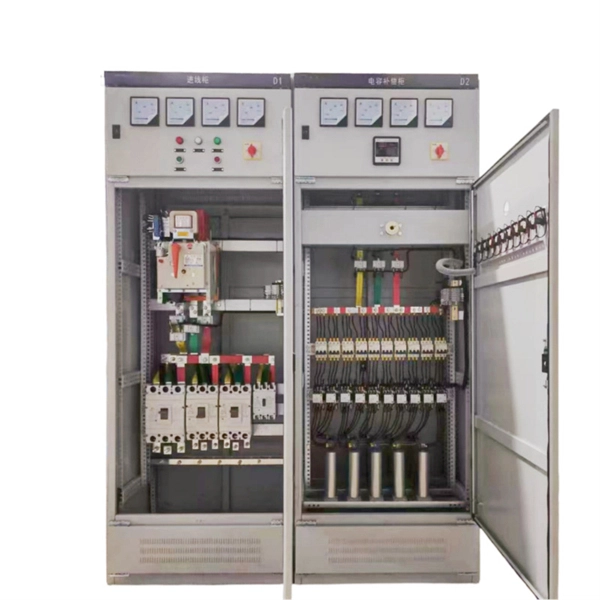

Proper installation of a paint protection distribution box ensures safe, organized, and reliable electrical distribution for your system.Site Selection and Placement
Choose a dry, well-ventilated, and accessible location for the distribution box, ideally close to the main power supply to minimize voltage drop and power loss . Avoid areas with high humidity, corrosive substances, or flammable materials. For outdoor installations, ensure the enclosure has a high protection rating (e.g., IP66 or NEMA 4) to resist water, dust, and UV exposure . The box should be mounted at a convenient height, typically 1.5–1.8 meters above the ground, for easy operation and inspection .
Enclosure and Protection
Select a durable enclosure made of steel, stainless steel, plastic, or fiberglass depending on environmental conditions . Ensure the box includes circuit breakers, fuses, and surge protectors for each circuit to prevent overloads, short circuits, and fire hazards . Modern boxes may also include Residual-Current Devices (RCDs) or RCBOs for additional safety .
Wiring and Grounding
Turn off the main power before wiring. Use high-temperature resistant copper wires with cross-sectional areas suitable for the load . Maintain neat cable management, proper insulation, and clear labeling of circuits. All metal parts, including the box and internal components, must be properly grounded, and a protective neutral wire should be connected through a terminal board . Install a leakage protector to enhance safety.
Installation Procedure
Secure the box firmly using mounting brackets or screws to prevent movement or tilting due to vibration or accidental impact . Leave sufficient space around the box for ventilation and maintenance. After wiring, perform visual inspections and multimeter tests to verify correct connections and functionality before powering on .
Compliance and Maintenance
Follow local electrical codes (NEC, IEC, or regional standards) and use UL/CE-certified components . Record installation details for future inspections. Schedule regular maintenance and inspections to ensure long-term reliability, checking for loose connections, corrosion, or signs of overheating. By following these guidelines, your paint protection distribution box will provide safe, efficient, and durable electrical distribution, minimizing risks and ensuring optimal performance of your paint protection system.
