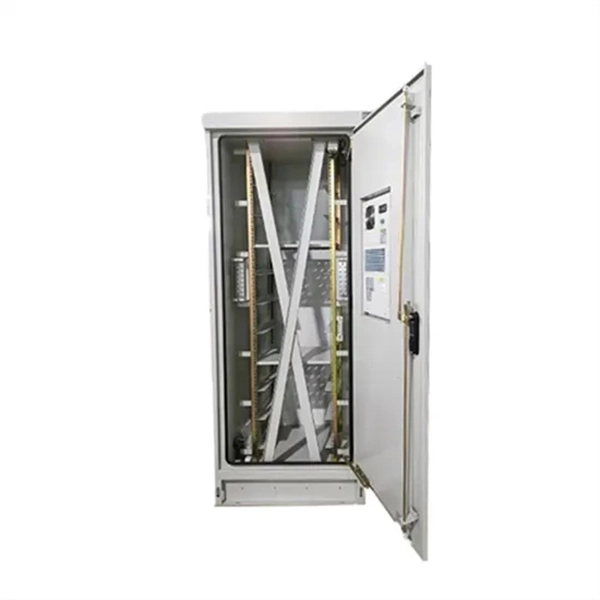

Several ways to place cable trays

Proper cable tray placement ensures safe, organized, and code-compliant routing of electrical cables while providing structural support and ease of maintenance.Planning and Route Design

Before installation, plan the cable tray route carefully. Consider clearance, load capacity, cable separation, and future maintenance access. Avoid obstacles such as doors, pathways, or equipment that may block installation or inspection. Ensure the route allows for proper airflow and heat dissipation, especially for power cables .

Selecting the Right Tray Type

Choose a tray type based on cable type, load, and environment:

• Ladder trays: Ideal for large power cables; provide ventilation and convenient tie points .
• Ventilated trough trays: Offer continuous support for smaller control or instrumentation cables .
• Solid-bottom trays: Suitable for environments with minimal heat generation or where aesthetics are important .
• Corrosion-resistant materials: Use fiberglass-reinforced plastic (FRP) or coated metals in high-moisture or chemical environments .

Sizing and Load Considerations

Calculate tray width and depth based on the number and type of cables. Undersized trays can cause overheating, while oversized trays waste space and resources. Ensure the tray can support the total cable weight without excessive deflection; deflection should not exceed 1/200 of the span for standard spans and 1/150 for spans ≥ 6000 mm .

Mounting and Support

Secure trays using appropriate clamps, brackets, or hangers. Typical support spacing ranges from 1.5 to 3 meters, depending on tray type and load. Mount trays on walls, ceilings, or floors, coordinating with structural elements like beams or columns. Avoid placing trays directly under corrosive pipelines or above thermal pipelines; maintain minimum distances of 500 mm to 1000 mm depending on insulation .

Installation Techniques

• Align trays straight and level using connectors and fittings.
• Maintain proper bend radius for cables exiting the tray to prevent damage .
• Ensure bonding and grounding requirements are met for safety .
• When trays run alongside pipe racks, place them on one side to avoid interference .

Maintenance and Safety

Leave sufficient space around trays for inspection, cable addition, or repair. Regularly check for sagging, corrosion, or loose fittings. Follow local building codes and electrical standards to ensure compliance and safe operation . By following these steps, cable trays will provide organized, safe, and durable support for electrical systems, facilitating both current operation and future upgrades.
