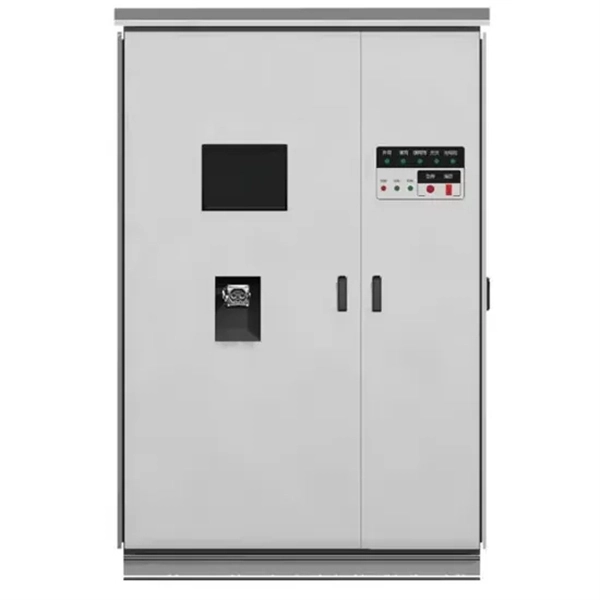

Direction of power cord from the house s electrical distribution box

The power cord from a house's electrical distribution box carries electricity from the utility supply into the main isolator, then through protective devices, and finally distributes it to subcircuits via MCBs and neutral/earth connections.Main Power Entry

The main power cord enters the house from the utility pole or service line and is first connected to the energy meter to measure consumption. From the meter, the phase (live) and neutral wires are routed to the main isolator switch, which serves as the primary on/off control for the house's electrical system . The main isolator allows safe disconnection of power for maintenance or emergencies.

Routing Inside the Distribution Box

After the main isolator, the phase wire is typically connected to the RCCB (Residual Current Circuit Breaker) or RCD (Residual-Current Device), which protects against current leakage and electric shock. The neutral wire is connected to the neutral bus bar inside the distribution board . From the RCCB, the phase wire is distributed in parallel to the MCBs (Miniature Circuit Breakers), each protecting individual circuits such as lighting, outlets, or appliances . The neutral bus bar is shared across all circuits, completing the return path for current.

Grounding

The earth wire is connected to the ground bus bar in the distribution box, providing a safe path for fault currents and protecting against electric shock. All metallic parts of appliances and outlets are connected to this grounding system .

Direction and Layout

• Incoming power: Utility → Energy meter → Main isolator
• Protection devices: Main isolator → RCCB → MCBs
• Distribution: MCBs → Individual circuits (lights, outlets, appliances)
• Neutral return: All circuits → Neutral bus bar → Main neutral line
• Earth connection: All metallic parts → Ground bus bar → Earth rod or plate The wiring inside the house follows a top-down or left-right layout depending on the panel design, ensuring that live, neutral, and earth wires are clearly separated and organized for safety and maintenance .

Safety Considerations

• Always ensure the main power is off before working on the distribution box.
• Maintain proper color coding: typically red/brown for live, black/blue for neutral, and green/yellow for earth.
• Keep wires neatly routed to avoid short circuits and allow easy identification of circuits.
• Use appropriately rated MCBs and RCCBs for each circuit based on load requirements . Following this routing ensures that electricity flows safely from the utility supply into the house, through protective devices, and to all subcircuits efficiently.
