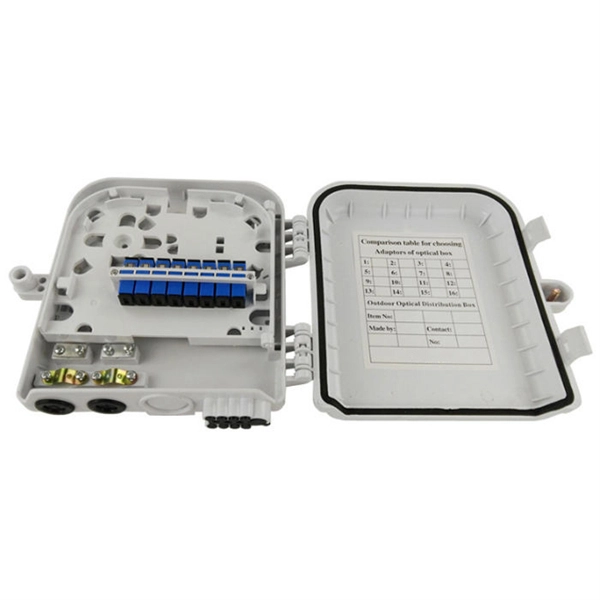

Fiber optic cable reinforcing core inside the junction box

The reinforcing core of a fiber optic cable is secured inside the junction box to provide mechanical support, strain relief, and protection for the optical fibers.

The reinforcing core (also called the strength member) is a central component of a fiber optic cable that provides tensile strength and prevents the delicate optical fibers from being damaged during installation or environmental stress . Inside a junction box or fiber optic splice closure, this core is clamped and fixed to the base or support frame to ensure that the cable remains stable and does not move under tension or bending . This is critical for maintaining low optical loss and preventing fiber breakage.

Inside the junction box, the reinforcing core is typically fixed using an optical cable fixing device. The process involves:

• Inserting the cable into the designated entry port of the junction box.
• Clamping the reinforcing core to the base or support frame to provide strain relief.
• Securing the cable with heat shrink sleeves or mechanical clamps to prevent movement of both the incoming and outgoing cables .

This setup ensures that the optical fibers are not subjected to stress at the splice points or connectors, which could otherwise degrade signal quality.

Beyond securing the reinforcing core, junction boxes also include:

• Splice trays to organize and protect fiber splices. These trays can store excess fiber length and maintain a minimum bend radius to prevent microbending losses .
• Heat shrink or silicone sleeves to protect fiber connectors and splices from moisture and dust .
• Sealing mechanisms at cable entry points to maintain environmental protection, often using emery polishing, aluminum foil, and heat shrink tubes .

The reinforcing core inside a fiber optic junction box is essential for mechanical stability, strain relief, and protection of optical fibers. Proper installation involves clamping the core, securing the cable, and organizing fibers in splice trays, all while ensuring environmental sealing to maintain long-term performance and reliability of the fiber optic network .
