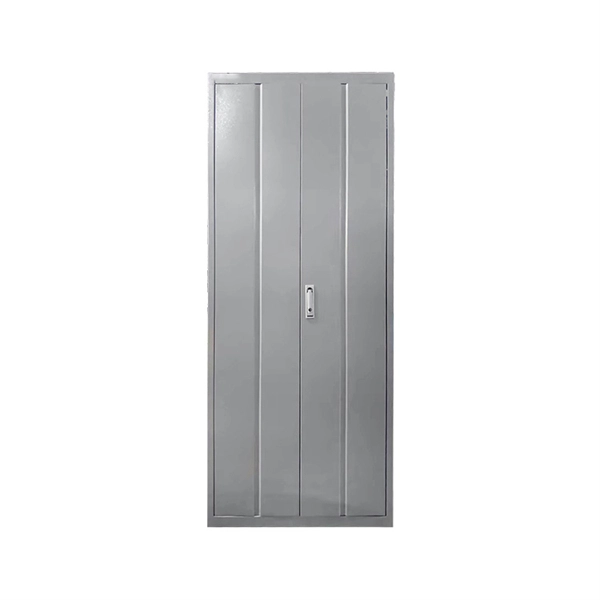

Distribution Box Ground Anchor

A distribution box ground anchor ensures safe and reliable grounding by connecting the metal enclosure to the earth and the system's central ground, maintaining low resistance and preventing electrical hazards.

Proper grounding of a distribution box is critical for electrical safety, equipment protection, and personnel safety. The metal enclosure of the box must be connected to the main grounding system using dedicated grounding wires, ensuring that any fault current is safely dissipated into the earth . The total ground resistance should typically be less than 0.1 Ohm for industrial applications, or below 25 Ohms in general building installations .

1. Anchor Points: Most distribution boxes, especially stainless steel enclosures, come with factory-preset threaded studs or welded points at the base or side walls. These serve as stable mechanical and electrical anchor points for grounding wires .

2. Wire Connection: Use a copper core wire or flexible braided copper tape to connect the box to the grounding system. The wire should be attached to the anchor point using anti-loosening washers to prevent loosening due to vibration or door movement .

3. Bonding Components: All metal parts inside the box, including doors, panels, and internal components that require grounding, should be connected to the PE bus (protective earth bus). This ensures equipotential bonding and reduces the risk of voltage differences across components .

4. External Connections: Metal conduits or threaded pipes entering the box should also be electrically bonded to the enclosure, either by welding or using conductive connectors, to maintain continuity .

• Material Matching: Use connectors that match the enclosure material to prevent electrochemical corrosion .
• Surface Preparation: Remove coatings, paint, or oxide layers at contact points to reduce resistance and ensure a reliable connection .
• Conductive Paste: In outdoor or high-humidity environments, applying conductive paste can protect the connection from moisture and oxidation .

• Measure the ground resistance after installation to ensure it meets design standards. For industrial setups, the resistance between the box and the central ground should be
