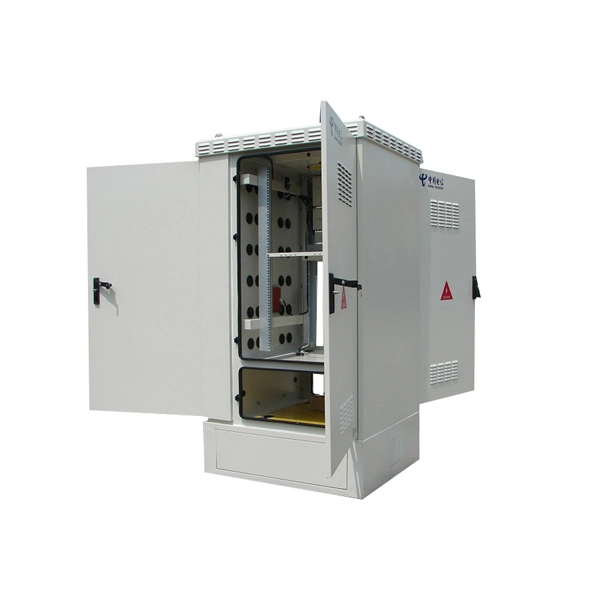

Electrical installation of iron distribution boxes

Proper installation of iron electrical distribution boxes involves careful site selection, secure mounting, standardized wiring, and thorough grounding to ensure safety and compliance.Site Selection and Placement

Choose a dry, well-ventilated, and accessible location close to the main power supply to minimize power loss and facilitate maintenance. Avoid areas with high humidity, corrosive substances, or flammable materials. For residential setups, the recommended height is around 1.5 meters above the ground, while industrial installations may vary depending on surrounding equipment and space constraints .

Mounting the Box

1. Prepare the wall structure: Ensure the wall is level and strong enough to support the iron box. Pre-bury wooden blocks or iron pieces if required for additional support .
2. Fixing method: Use suitable mounting brackets or screws to secure the box firmly, preventing movement or tilting due to vibration or accidental impact .
3. Check alignment: Ensure the box is properly aligned and level before finalizing the installation.

Wiring and Internal Setup

1. Power off: Always turn off the main power supply before starting wiring .
2. Use appropriate wires: High-temperature resistant copper core wires should be used, with cross-sectional areas matching the load current requirements .
3. Organize wiring: Maintain neat cable management, secure connections, and proper insulation. Use DIN rails or terminal blocks for orderly mounting of circuit breakers and other components .
4. Protection devices: Install circuit breakers, fuses, and leakage protectors for each circuit to prevent overloads, short circuits, and electrical hazards .

Grounding and Safety

• Ground the metal box: Connect the iron enclosure, electrical installation board, and all metal components to a reliable grounding system .
• Neutral wire connection: Ensure the protective neutral wire is securely connected through the terminal board.
• Sealing: All cable inlets and cover joints should be tightly sealed to prevent dust or moisture ingress .

Final Checks and Maintenance

• Perform visual inspections and use a multimeter to verify proper connections before powering on .
• Label all circuits clearly for easy identification and future maintenance.
• Schedule regular inspections to ensure long-term reliability and compliance with electrical standards . By following these steps, an iron electrical distribution box can be installed safely, efficiently, and in compliance with relevant electrical codes, ensuring both operational reliability and user safety.
