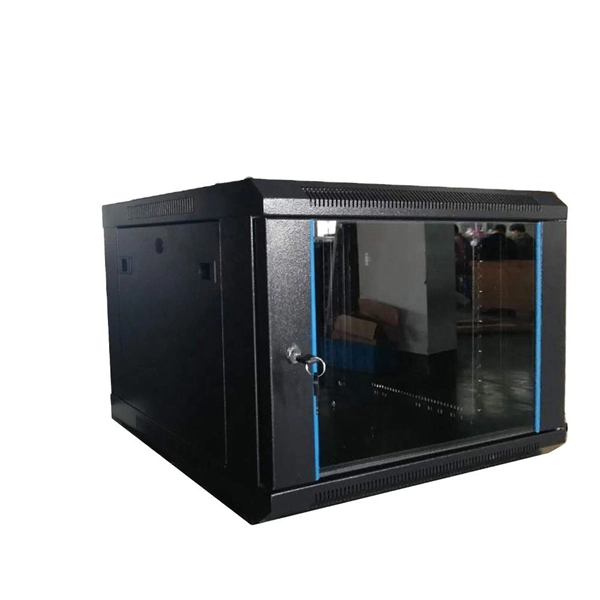

The role of fiber optic ODF racks

Fiber optic ODF racks serve as centralized hubs for organizing, protecting, and managing fiber optic connections, enabling efficient network maintenance, scalability, and high-density deployments.Core Functions of ODF Racks

Organization and Termination: ODF racks provide a structured environment where fiber cables are terminated into connectors such as LC, SC, or MPO, ensuring orderly routing and easy identification of connections . Splicing and Patching: They house splice trays for joining fiber ends via fusion or mechanical splicing and provide patch panels for flexible cross-connection of fibers, allowing signals to be rerouted without disturbing permanent splices . Protection: ODF racks shield delicate fibers and connectors from physical damage, dust, moisture, and electromagnetic interference, preserving signal integrity and reducing the risk of network downtime . Cable Management: Internal channels, tie points, and bend-radius protection maintain proper fiber routing, prevent signal loss, and simplify maintenance . Scalability and Flexibility: Rack-mounted ODFs support modular designs and high-density configurations, accommodating hundreds of fibers in a single frame and allowing easy expansion as network demands grow .

Structural and Design Considerations

Rack Compatibility: Most ODF racks are designed for standard 19-inch server racks, with variable heights (1U, 2U, 4U, etc.) to match fiber capacity requirements . Durable Construction: Enclosures are typically made from SPCC steel with powder-coated or anodized surfaces to resist corrosion and provide electromagnetic shielding . Ease of Maintenance: Features like front-access panels, labeled ports, and slide-out trays reduce technician workload, minimize errors, and speed up troubleshooting . High-Density Deployment: Advanced ODF racks can manage 48, 96, or even 288 ports in a compact footprint, optimizing space in data centers and telecom exchanges .

Benefits in Fiber Networks

• Simplified Network Management: Centralized termination and patching reduce cable clutter and make reconfigurations straightforward .
• Enhanced Reliability: Protection from environmental and mechanical stress ensures long-term signal stability .
• Future-Proofing: Modular and scalable designs allow networks to grow without replacing the entire ODF system .
• Reduced Mean Time to Repair (MTTR): Organized cabling and clear labeling enable faster fault detection and maintenance . In summary, fiber optic ODF racks are essential for maintaining organized, protected, and scalable fiber networks, supporting high-density deployments, simplifying maintenance, and ensuring reliable data transmission across modern telecom and data center infrastructures .
