Assembly Requirements for Distribution Box Cores

Distribution box cores must be assembled according to IEC 61439 standards, ensuring proper enclosure, busbar arrangement, grounding, protection devices, and verification for safe and reliable operation.Design and Standards Compliance

Assembly of distribution box cores must comply with IEC 61439 / EN 61439, which governs low-voltage switchgear assemblies. The standard emphasizes safety, reliability, and performance under operating conditions. Key steps include:

• Project Data Collection: Define installation environment, operational conditions, connection to the public power supply, and electrical circuits and consumers. The assembly is treated as a "BLACK BOX" with four interfaces that must be rated correctly for safe operation .
• Design Verification: Determine rated short-time withstand current (Icw), rated current of the assembly (InA), outgoing circuits (InC), operating current (IB), power dissipation, and rated diversity factor (RDF). Verify permissible temperature rise according to IEC 61439-1 .
• Documentation: Maintain design verification, risk assessments, and test reports. A Declaration of Conformity and CE marking are required for EU compliance .

Enclosure and Material Requirements

• Material: Use durable materials such as 2 mm GI sheet steel for outdoor boxes or suitable plastic/steel for indoor applications .
• Protection: Ensure proper IP/NEMA ratings (e.g., IP-55 for outdoor use) to protect against dust and water ingress .
• Construction: Reinforce the body with channels, provide slanted roofs for water runoff, and use concealed hinges and secure locking systems for safety .

Electrical Core Assembly

• Busbars: Use appropriately sized copper or aluminum busbars with proper insulation and spacing to prevent short circuits. Ensure adequate clearance from the enclosure .
• Incoming and Outgoing Feeders: Provide droppers and busbar connections according to rated current and KVA capacity. Use PVC insulating sleeves with standard color coding for phases .
• Protection Devices: Include MCCBs, fuses, isolators, and surge protectors for each circuit. Arc-chutes may be required for isolators to extinguish arcs safely .
• Grounding: Provide solid earthing points on both sides of the box to ensure safety .

Assembly and Verification

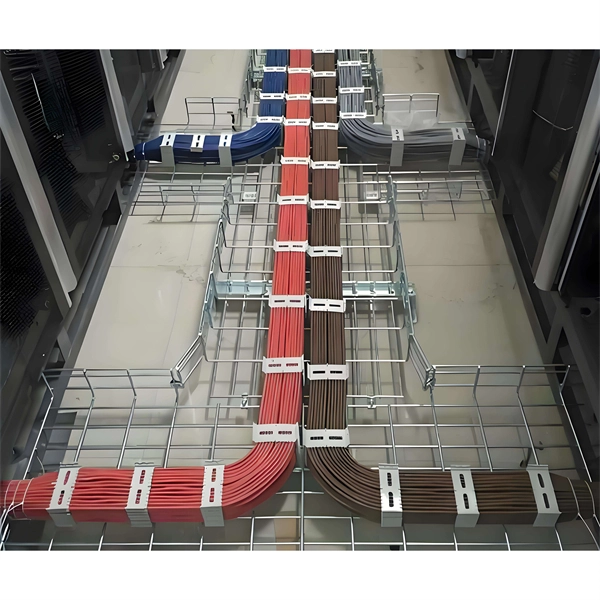

• Wiring and Cable Management: Ensure neat, insulated, and correctly sized wiring. Maintain proper separation of live parts and secure connections .
• Routine Testing: Perform visual inspections, multimeter tests, and routine verification to confirm compliance with design specifications and safety standards .
• Labeling and Documentation: Clearly label all circuits, busbars, and components. Maintain assembly documentation for future inspections and maintenance .

Installation Considerations

• Placement: Install in dry, accessible areas with good ventilation, typically at a height of ~1.5 m for ease of operation .
• Modular Design: Consider modular enclosures to facilitate future upgrades or maintenance .
• Compliance: Follow local codes, NEC, IEC, or UL/CE-certified parts to ensure regulatory compliance . By following these assembly requirements, distribution box cores can achieve safe, reliable, and standard-compliant operation, minimizing risks of overheating, short circuits, or operational failures.
