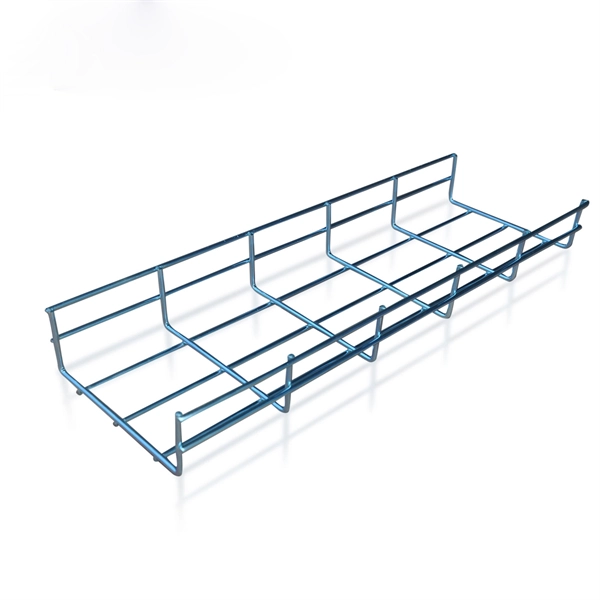

Cable tray installation volume 3

A 3% cable tray fill is extremely low, well below typical design limits, and indicates significant spare capacity for future cable additions.

Cable tray fill percentage represents the ratio of the total cross-sectional area of installed cables to the usable interior area of the tray. Standard design limits vary depending on cable type: typically 40–50% for power cables and up to 60% for control or communication cables . A 3% fill means that only a tiny fraction of the tray's capacity is being used, leaving ample room for additional cables or future expansion .

• Heat Dissipation: Low fill improves airflow around cables, reducing the risk of overheating and allowing cables to operate closer to their rated ampacity .
• Future Expansion: With only 3% filled, the tray can accommodate many more cables without requiring resizing or additional trays .
• Cost Efficiency: While underutilized trays may seem oversized, they provide flexibility for future projects and reduce the need for frequent modifications .
• Compliance: Even at 3% fill, the installation is compliant with standards, as it is well below maximum fill limits specified in codes like NEC 392 or IEC 60287 .

• Tray Sizing: Ensure the tray width and depth are appropriate for the expected future load. Oversizing slightly is acceptable for long-term planning .
• Cable Arrangement: Even with low fill, maintain proper spacing and secure cables to prevent sagging or mechanical stress .
• Ampacity Derating: At 3% fill, derating due to mutual heating is negligible, so cables can carry near their full rated current .
• Installation Standards: Follow manufacturer and local code guidelines for support spacing, fastening, and grounding of trays and cables .

In summary, a 3% cable tray fill is safe, highly underutilized, and allows for excellent heat dissipation and future cable additions, making it a conservative and flexible installation choice. Proper planning ensures compliance, safety, and long-term efficiency.
